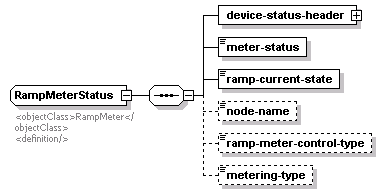

complexType RampMeterStatus

diagram
namespace	http://www.ite.org/tmdd
children	device-status-header meter-status ramp-current-state node-name ramp-meter-control-type metering-type
used by	element  rampMeterStatus
annotation	documentation <objectClass>RampMeter</objectClass> <definition/>
source	<xs:complexType name="RampMeterStatus">   <xs:annotation>     <xs:documentation>       <objectClass>RampMeter</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-status-header" type="DeviceStatusHeader"/>     <xs:element name="meter-status" type="Meter-status"/>     <xs:element name="ramp-current-state" type="Ramp-current-state"/>     <xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>     <xs:element name="ramp-meter-control-type" type="RampMeter-control-type" minOccurs="0"/>     <xs:element name="metering-type" type="Meter-metering-type" minOccurs="0"/>   </xs:sequence> </xs:complexType>

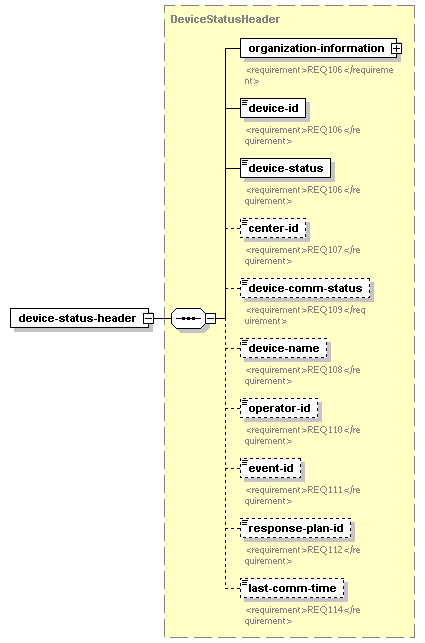

element RampMeterStatus/device-status-header

diagram
type	DeviceStatusHeader
properties	isRef  0 content  complex
children	organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
source	<xs:element name="device-status-header" type="DeviceStatusHeader"/>

element RampMeterStatus/meter-status

diagram
type	Meter-status
properties	isRef  0 content  simple
source	<xs:element name="meter-status" type="Meter-status"/>

element RampMeterStatus/ramp-current-state

diagram
type	Ramp-current-state
properties	isRef  0 content  simple
source	<xs:element name="ramp-current-state" type="Ramp-current-state"/>

element RampMeterStatus/node-name

diagram
type	Roadway-network-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>

element RampMeterStatus/ramp-meter-control-type

diagram
type	RampMeter-control-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ramp-meter-control-type" type="RampMeter-control-type" minOccurs="0"/>

element RampMeterStatus/metering-type

diagram
type	Meter-metering-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="metering-type" type="Meter-metering-type" minOccurs="0"/>
