complexType lrms:Distance

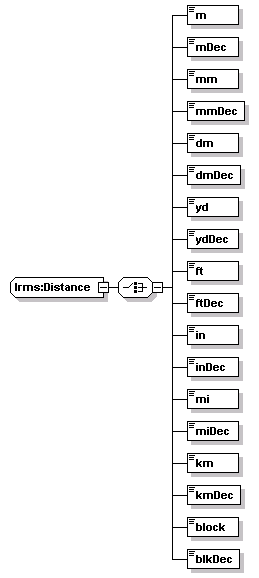

diagram
namespace http://www.LRMS-Adopted-02-00-00
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
used by
elements lrms:Height/altitude lrms:PolarCoordinates/angularDistance lrms:Chain/chainOffset lrms:LinearReference/endDistance lrms:LinearReference/endLateralOffset lrms:CrossStreetsPoint/offset lrms:CrossStreetsLink/offset1 lrms:CrossStreetsLink/offset2 lrms:GeoLocationDelta/delta/deltaDistance/offsetEast lrms:PointOffset/offsetEast lrms:Geometry/nodeOffset/offsetEast lrms:GeoLocationDelta/delta/deltaDistance/offsetNorth lrms:Geometry/nodeOffset/offsetNorth lrms:PointOffset/offsetNorth lrms:LinearReference/startDistance lrms:LinearReference/startLateralOffset lrms:Transition/transitionOffset
source <xs:complexType name="Distance">
  <xs:choice>
    <xs:element name="m">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-10000000"/>
          <xs:maxInclusive value="+10000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000000"/>
          <xs:maxInclusive value="+10000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mm">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="dm">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="dmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="yd">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-17600000"/>
          <xs:maxInclusive value="+17600000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ydDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-17600000"/>
          <xs:maxInclusive value="+17600000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ft">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-52800000"/>
          <xs:maxInclusive value="+52800000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ftDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-52800000"/>
          <xs:maxInclusive value="+52800000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="in">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="inDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000000"/>
          <xs:maxInclusive value="+1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mi">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="miDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="km">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="kmDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-10000"/>
          <xs:maxInclusive value="+10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="block">
      <xs:simpleType>
        <xs:restriction base="xs:short">
          <xs:minInclusive value="-1000"/>
          <xs:maxInclusive value="+1000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="blkDec">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="-1000"/>
          <xs:maxInclusive value="+1000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element lrms:Distance/m
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -10000000
maxInclusive +10000000
source <xs:element name="m">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-10000000"/>
      <xs:maxInclusive value="+10000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000000
maxInclusive +10000000
source <xs:element name="mDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000000"/>
      <xs:maxInclusive value="+10000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mm
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="mm">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="mmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/dm
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="dm">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/dmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="dmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/yd
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -17600000
maxInclusive +17600000
source <xs:element name="yd">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-17600000"/>
      <xs:maxInclusive value="+17600000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ydDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -17600000
maxInclusive +17600000
source <xs:element name="ydDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-17600000"/>
      <xs:maxInclusive value="+17600000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ft
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -52800000
maxInclusive +52800000
source <xs:element name="ft">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-52800000"/>
      <xs:maxInclusive value="+52800000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/ftDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -52800000
maxInclusive +52800000
source <xs:element name="ftDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-52800000"/>
      <xs:maxInclusive value="+52800000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/in
diagram
type restriction of xs:int
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="in">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/inDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000000
maxInclusive +1000000
source <xs:element name="inDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000000"/>
      <xs:maxInclusive value="+1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/mi
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="mi">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/miDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="miDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/km
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="km">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/kmDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -10000
maxInclusive +10000
source <xs:element name="kmDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-10000"/>
      <xs:maxInclusive value="+10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/block
diagram
type restriction of xs:short
properties
isRef 0
content simple
facets
minInclusive -1000
maxInclusive +1000
source <xs:element name="block">
  <xs:simpleType>
    <xs:restriction base="xs:short">
      <xs:minInclusive value="-1000"/>
      <xs:maxInclusive value="+1000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element lrms:Distance/blkDec
diagram
type restriction of xs:decimal
properties
isRef 0
content simple
facets
minInclusive -1000
maxInclusive +1000
source <xs:element name="blkDec">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="-1000"/>
      <xs:maxInclusive value="+1000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
