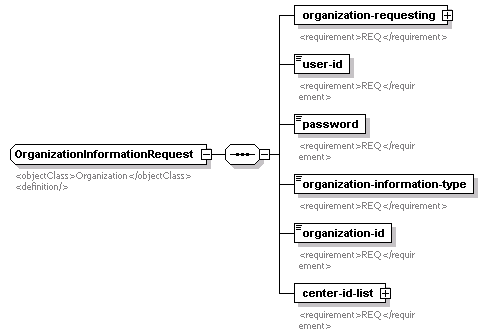

complexType OrganizationInformationRequest
diagram
namespace http://www.ite.org/tmdd
children organization-requesting user-id password organization-information-type organization-id center-id-list
used by
element organizationInformationRequest
annotation
documentation
<objectClass>Organization</objectClass>
<definition/>
source <xs:complexType name="OrganizationInformationRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Organization</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-requesting" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="user-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="password" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="organization-information-type" type="Organization-information-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="organization-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-id-list">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="1024">
          <xs:element name="center-id" type="Organization-resource-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

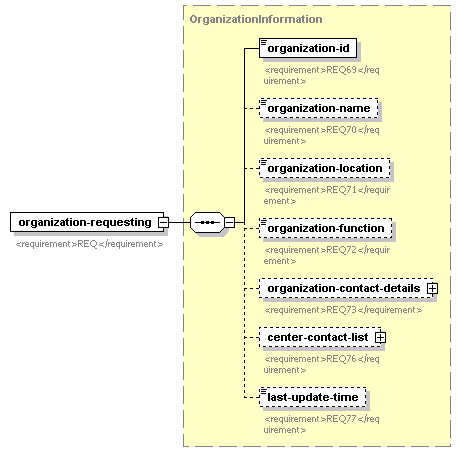

element OrganizationInformationRequest/organization-requesting
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="organization-requesting" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationInformationRequest/user-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="user-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationInformationRequest/password
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="password" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationInformationRequest/organization-information-type
diagram
type Organization-information-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="organization-information-type" type="Organization-information-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationInformationRequest/organization-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="organization-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationInformationRequest/center-id-list
diagram
properties
isRef 0
content complex
children center-id
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="center-id-list">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="1024">
      <xs:element name="center-id" type="Organization-resource-identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element OrganizationInformationRequest/center-id-list/center-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="center-id" type="Organization-resource-identifier"/>
