complexType NodeStatusList

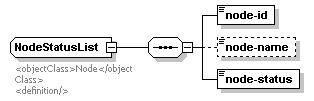

diagram
namespace	http://www.ite.org/tmdd
children	node-id node-name node-status
used by	element  NodeStatus/node-status/node-statu
annotation	documentation <objectClass>Node</objectClass> <definition/>
source	<xs:complexType name="NodeStatusList">   <xs:annotation>     <xs:documentation>       <objectClass>Node</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="node-id" type="Roadway-network-identifier"/>     <xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>     <xs:element name="node-status" type="Node-status"/>   </xs:sequence> </xs:complexType>

element NodeStatusList/node-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="node-id" type="Roadway-network-identifier"/>

element NodeStatusList/node-name

diagram
type	Roadway-network-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>

element NodeStatusList/node-status

diagram
type	Node-status
properties	isRef  0 content  simple
source	<xs:element name="node-status" type="Node-status"/>
