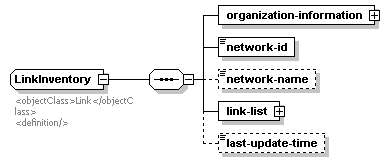

complexType LinkInventory
diagram
namespace http://www.ite.org/tmdd
children organization-information network-id network-name link-list last-update-time
used by
element linkInventory
annotation
documentation
<objectClass>Link</objectClass>
<definition/>
source <xs:complexType name="LinkInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Link</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation"/>
    <xs:element name="network-id" type="Roadway-network-identifier"/>
    <xs:element name="network-name" type="Roadway-network-name" minOccurs="0"/>
    <xs:element name="link-list">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link" type="LinkList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

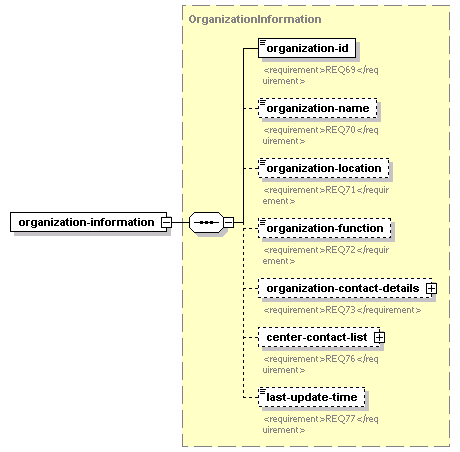

element LinkInventory/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="organization-information" type="OrganizationInformation"/>

element LinkInventory/network-id
diagram
type Roadway-network-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
source <xs:element name="network-id" type="Roadway-network-identifier"/>

element LinkInventory/network-name
diagram
type Roadway-network-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
source <xs:element name="network-name" type="Roadway-network-name" minOccurs="0"/>

element LinkInventory/link-list
diagram
properties
isRef 0
content complex
children link
source <xs:element name="link-list">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link" type="LinkList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

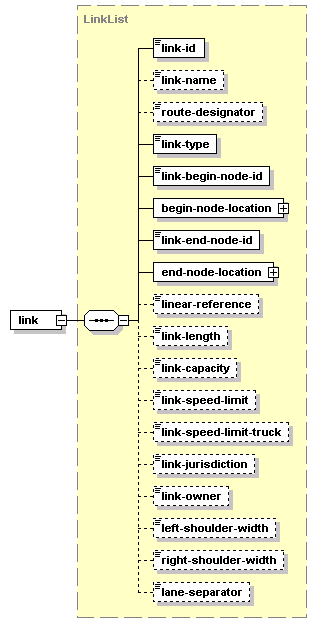

element LinkInventory/link-list/link
diagram
type LinkList
properties
isRef 0
content complex
children link-id link-name route-designator link-type link-begin-node-id begin-node-location link-end-node-id end-node-location linear-reference link-length link-capacity link-speed-limit link-speed-limit-truck link-jurisdiction link-owner left-shoulder-width right-shoulder-width lane-separator
source <xs:element name="link" type="LinkList"/>

element LinkInventory/last-update-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0"/>
