complexType LaneData
diagram
namespace http://www.ite.org/tmdd

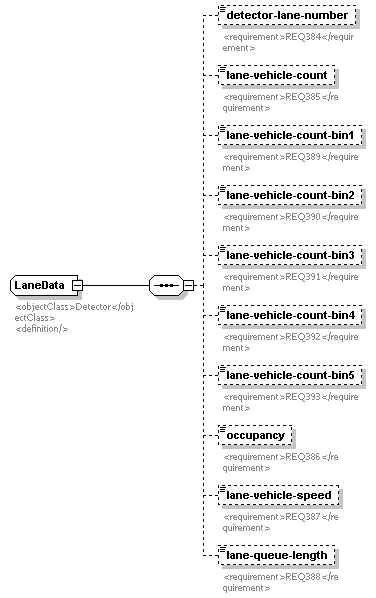

children detector-lane-number lane-vehicle-count lane-vehicle-count-bin1 lane-vehicle-count-bin2 lane-vehicle-count-bin3 lane-vehicle-count-bin4 lane-vehicle-count-bin5 occupancy lane-vehicle-speed lane-queue-length
used by
element DetectorReport/lane-data/lane-data-item
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="LaneData">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="detector-lane-number" type="Detector-lane-number" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ384</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ385</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count-bin1" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ389</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count-bin2" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ390</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count-bin3" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ391</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count-bin4" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ392</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-count-bin5" type="Detector-vehicle-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ393</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="occupancy" type="Detector-occupancy" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ386</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-vehicle-speed" type="Detector-vehicle-speed" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ387</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-queue-length" type="Detector-vehicle-queue-length" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ388</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element LaneData/detector-lane-number
diagram
type Detector-lane-number
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
pattern [01]*
annotation
documentation
<requirement>REQ384</requirement>
source <xs:element name="detector-lane-number" type="Detector-lane-number" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ384</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ385</requirement>
source <xs:element name="lane-vehicle-count" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ385</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count-bin1
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ389</requirement>
source <xs:element name="lane-vehicle-count-bin1" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ389</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count-bin2
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ390</requirement>
source <xs:element name="lane-vehicle-count-bin2" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ390</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count-bin3
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ391</requirement>
source <xs:element name="lane-vehicle-count-bin3" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ391</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count-bin4
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ392</requirement>
source <xs:element name="lane-vehicle-count-bin4" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ392</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-count-bin5
diagram
type Detector-vehicle-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100000
annotation
documentation
<requirement>REQ393</requirement>
source <xs:element name="lane-vehicle-count-bin5" type="Detector-vehicle-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ393</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/occupancy
diagram
type Detector-occupancy
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 100
annotation
documentation
<requirement>REQ386</requirement>
source <xs:element name="occupancy" type="Detector-occupancy" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ386</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-vehicle-speed
diagram
type Detector-vehicle-speed
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ387</requirement>
source <xs:element name="lane-vehicle-speed" type="Detector-vehicle-speed" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ387</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LaneData/lane-queue-length
diagram
type Detector-vehicle-queue-length
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 100000
annotation
documentation
<requirement>REQ388</requirement>
source <xs:element name="lane-queue-length" type="Detector-vehicle-queue-length" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ388</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
