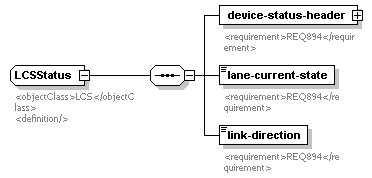

complexType LCSStatus
diagram
namespace http://www.ite.org/tmdd
children device-status-header lane-current-state link-direction
used by
element lCSStatus
annotation
documentation
<objectClass>LCS</objectClass>
<definition/>
source <xs:complexType name="LCSStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>LCS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-status-header" type="DeviceStatusHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ894</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <!-- xs:element name="operator-last-revised" type="Organization-resource-name" minOccurs="0" -->
    <xs:element name="lane-current-state" type="Lane-current-state">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ894</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-direction" type="Link-direction">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ894</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

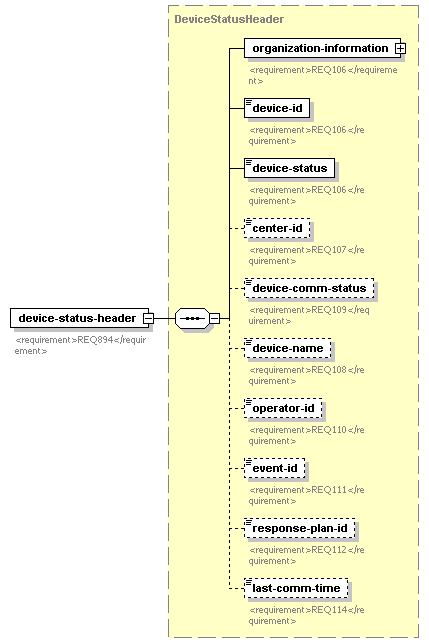

element LCSStatus/device-status-header
diagram
type DeviceStatusHeader
properties
isRef 0
content complex
children organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
annotation
documentation
<requirement>REQ894</requirement>
source <xs:element name="device-status-header" type="DeviceStatusHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ894</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSStatus/lane-current-state
diagram
type Lane-current-state
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ894</requirement>
source <xs:element name="lane-current-state" type="Lane-current-state">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ894</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSStatus/link-direction
diagram
type Link-direction
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ894</requirement>
source <xs:element name="link-direction" type="Link-direction">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ894</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
