complexType LCSControlRequest

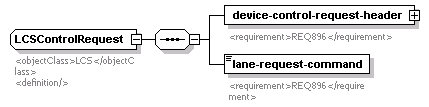

diagram
namespace http://www.ite.org/tmdd
children device-control-request-header lane-request-command
used by
element lCSControlRequest
annotation
documentation
<objectClass>LCS</objectClass>
<definition/>
source <xs:complexType name="LCSControlRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>LCS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ896</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-request-command" type="Lane-request-command">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ896</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element LCSControlRequest/device-control-request-header

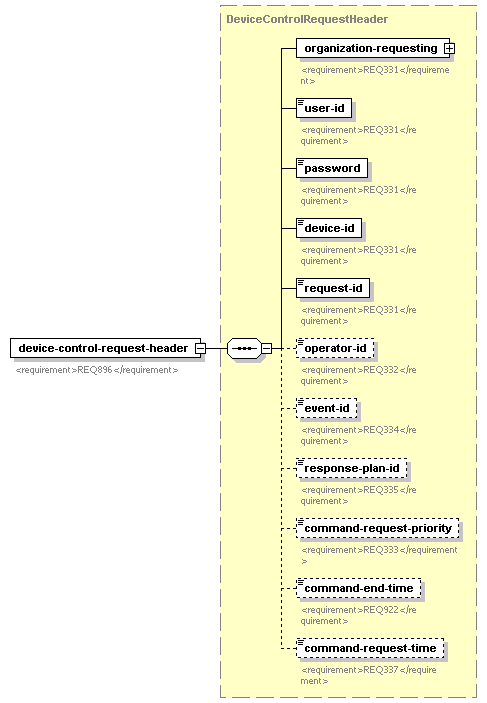

diagram
type DeviceControlRequestHeader
properties
isRef 0
content complex
children organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
annotation
documentation
<requirement>REQ896</requirement>
source <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ896</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSControlRequest/lane-request-command
diagram
type Lane-request-command
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ896</requirement>
source <xs:element name="lane-request-command" type="Lane-request-command">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ896</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
