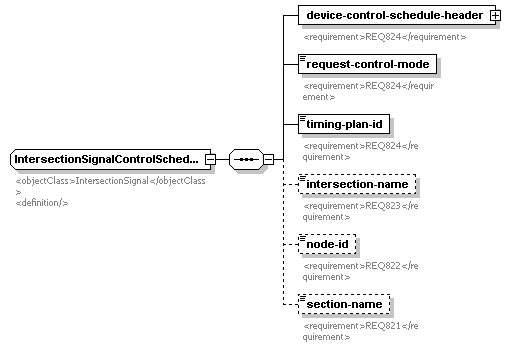

complexType IntersectionSignalControlSchedule
diagram
namespace http://www.ite.org/tmdd
children device-control-schedule-header request-control-mode timing-plan-id intersection-name node-id section-name
used by
element intersectionSignalControlSchedule
annotation
documentation
<objectClass>IntersectionSignal</objectClass>
<definition/>
source <xs:complexType name="IntersectionSignalControlSchedule">
  <xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-schedule-header" type="DeviceControlScheduleHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ824</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-control-mode" type="Intersection-signal-control-mode">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ824</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ824</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="intersection-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ823</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="node-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ822</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="section-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ821</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

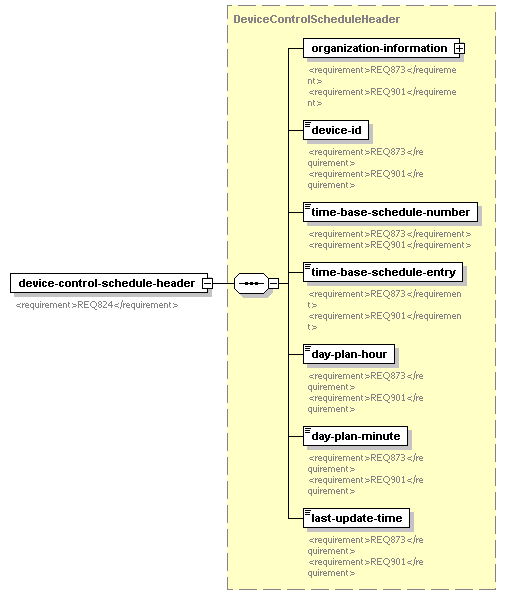

element IntersectionSignalControlSchedule/device-control-schedule-header
diagram
type DeviceControlScheduleHeader
properties
isRef 0
content complex
children organization-information device-id time-base-schedule-number time-base-schedule-entry day-plan-hour day-plan-minute last-update-time
annotation
documentation
<requirement>REQ824</requirement>
source <xs:element name="device-control-schedule-header" type="DeviceControlScheduleHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ824</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlSchedule/request-control-mode
diagram
type Intersection-signal-control-mode
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ824</requirement>
source <xs:element name="request-control-mode" type="Intersection-signal-control-mode">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ824</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlSchedule/timing-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ824</requirement>
source <xs:element name="timing-plan-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ824</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlSchedule/intersection-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ823</requirement>
source <xs:element name="intersection-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ823</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlSchedule/node-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ822</requirement>
source <xs:element name="node-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ822</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlSchedule/section-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ821</requirement>
source <xs:element name="section-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ821</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
