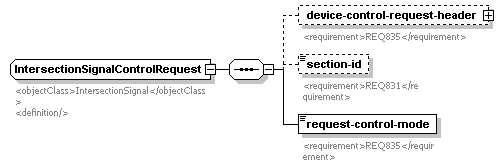

complexType IntersectionSignalControlRequest

diagram

namespace

http://www.ite.org/tmdd

children

device-control-request-header section-id request-control-mode

used by

element

intersectionSignalControlRequest

annotation

documentation

<objectClass>IntersectionSignal</objectClass>
<definition/>

source

<xs:complexType name="IntersectionSignalControlRequest">
<xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ835</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ831</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>

    <xs:element name="request-control-mode" type="Intersection-signal-control-mode">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ835</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

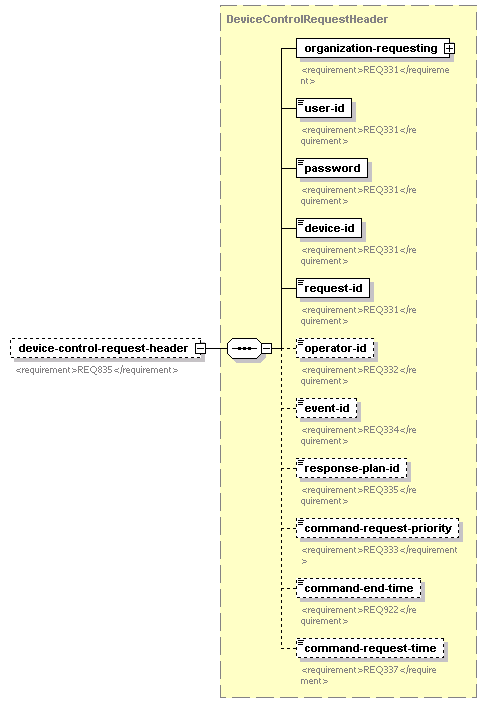

element IntersectionSignalControlRequest/device-control-request-header

diagram

type

DeviceControlRequestHeader

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time

annotation

documentation

<requirement>REQ835</requirement>

source

<xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ835</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>

element IntersectionSignalControlRequest/section-id

diagram

type

Organization-resource-identifier

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minLength	1
maxLength	32

annotation

documentation

<requirement>REQ831</requirement>

source

<xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ831</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>

element IntersectionSignalControlRequest/request-control-mode

diagram

type

Intersection-signal-control-mode

properties

isRef	0
content	simple

annotation

documentation

<requirement>REQ835</requirement>

source

<xs:element name="request-control-mode" type="Intersection-signal-control-mode">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ835</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>
