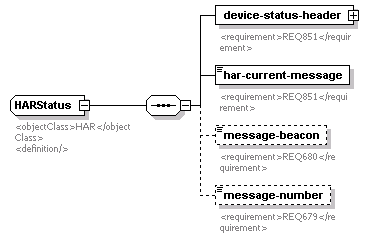

complexType HARStatus
diagram
namespace http://www.ite.org/tmdd
children device-status-header har-current-message message-beacon message-number
used by
element hARStatus
annotation
documentation
<objectClass>HAR</objectClass>
<definition/>
source <xs:complexType name="HARStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>HAR</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-status-header" type="DeviceStatusHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ851</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-current-message" type="Har-message">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ851</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-beacon" type="ntcip:DmsMessageBeacon" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ680</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-number" type="ntcip:DmsMessageNumber" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ679</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

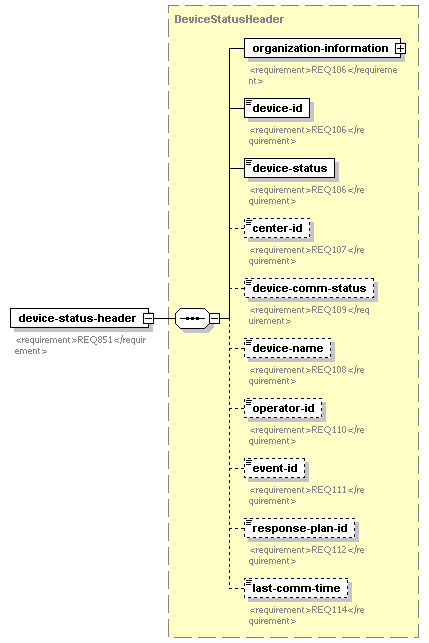

element HARStatus/device-status-header
diagram
type DeviceStatusHeader
properties
isRef 0
content complex
children organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
annotation
documentation
<requirement>REQ851</requirement>
source <xs:element name="device-status-header" type="DeviceStatusHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ851</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARStatus/har-current-message
diagram
type Har-message
properties
isRef 0
content simple
facets
minLength 1
maxLength 1024
annotation
documentation
<requirement>REQ851</requirement>
source <xs:element name="har-current-message" type="Har-message">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ851</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARStatus/message-beacon
diagram
type ntcip:DmsMessageBeacon
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ680</requirement>
source <xs:element name="message-beacon" type="ntcip:DmsMessageBeacon" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ680</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARStatus/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ679</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ679</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
