complexType HARMessageInventory

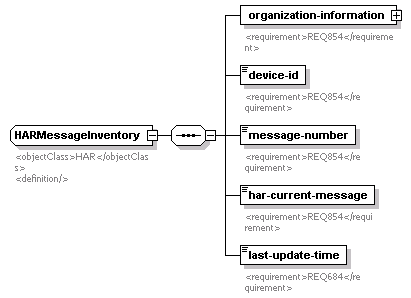

diagram
namespace http://www.ite.org/tmdd
children organization-information device-id message-number har-current-message last-update-time
used by
element hARMessageInventory
annotation
documentation
<objectClass>HAR</objectClass>
<definition/>
source <xs:complexType name="HARMessageInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>HAR</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ854</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ854</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-number" type="ntcip:DmsMessageNumber">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ854</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-current-message" type="Har-message">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ854</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ684</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element HARMessageInventory/organization-information

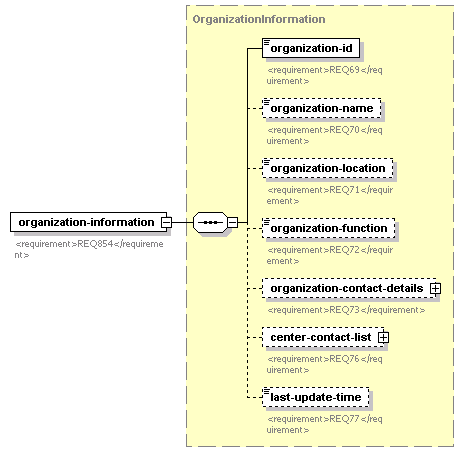

diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ854</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ854</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARMessageInventory/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ854</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ854</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARMessageInventory/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ854</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ854</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARMessageInventory/har-current-message
diagram
type Har-message
properties
isRef 0
content simple
facets
minLength 1
maxLength 1024
annotation
documentation
<requirement>REQ854</requirement>
source <xs:element name="har-current-message" type="Har-message">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ854</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARMessageInventory/last-update-time
diagram
type DateTimeZone
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ684</requirement>
source <xs:element name="last-update-time" type="DateTimeZone">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ684</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
