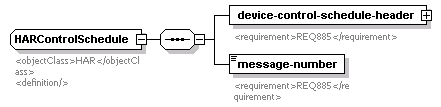

complexType HARControlSchedule
diagram
namespace http://www.ite.org/tmdd
children device-control-schedule-header message-number
used by
element hARControlSchedule
annotation
documentation
<objectClass>HAR</objectClass>
<definition/>
source <xs:complexType name="HARControlSchedule">
  <xs:annotation>
    <xs:documentation>
      <objectClass>HAR</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-schedule-header" type="DeviceControlScheduleHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ885</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-number" type="ntcip:DmsMessageNumber">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ885</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

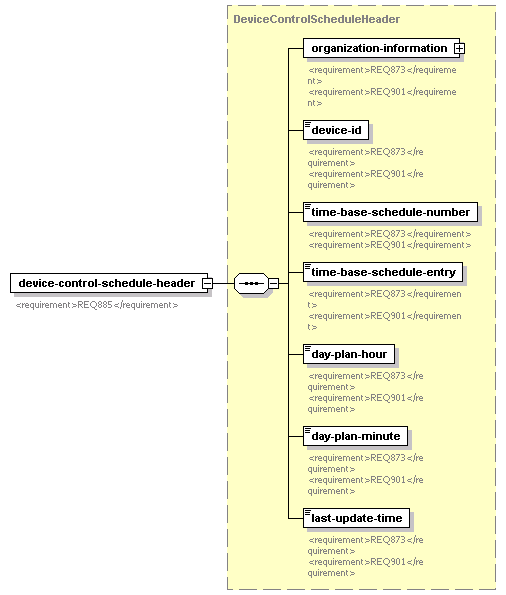

element HARControlSchedule/device-control-schedule-header
diagram
type DeviceControlScheduleHeader
properties
isRef 0
content complex
children organization-information device-id time-base-schedule-number time-base-schedule-entry day-plan-hour day-plan-minute last-update-time
annotation
documentation
<requirement>REQ885</requirement>
source <xs:element name="device-control-schedule-header" type="DeviceControlScheduleHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ885</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARControlSchedule/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ885</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ885</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
