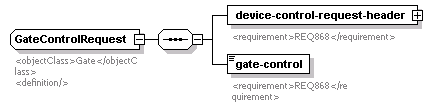

complexType GateControlRequest
diagram
namespace http://www.ite.org/tmdd
children device-control-request-header gate-control
used by
element gateControlRequest
annotation
documentation
<objectClass>Gate</objectClass>
<definition/>
source <xs:complexType name="GateControlRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Gate</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ868</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="gate-control" type="Gate-request-command">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ868</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

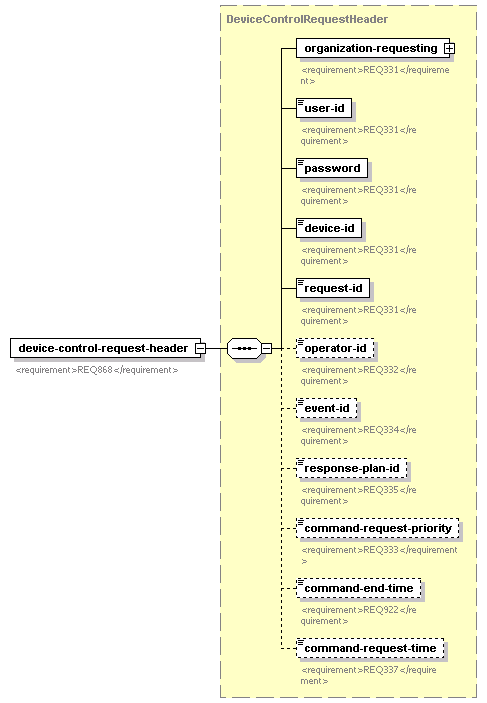

element GateControlRequest/device-control-request-header
diagram
type DeviceControlRequestHeader
properties
isRef 0
content complex
children organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
annotation
documentation
<requirement>REQ868</requirement>
source <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ868</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element GateControlRequest/gate-control
diagram
type Gate-request-command
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ868</requirement>
source <xs:element name="gate-control" type="Gate-request-command">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ868</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
