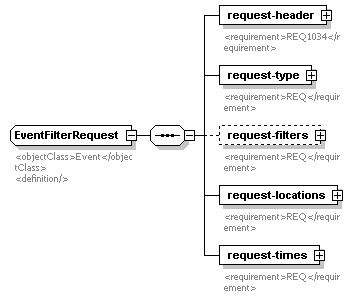

complexType EventFilterRequest
diagram
namespace http://www.ite.org/tmdd
children request-header request-type request-filters request-locations request-times
used by
element eventFilterRequest
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="EventFilterRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="request-header" type="RequestHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1034</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-type" type="RequestType">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-filters" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="request-filter" type="RequestFilter"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="request-locations">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="request-location" type="RequestLocation"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="request-times" type="RequestTimes">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EventFilterRequest/request-header
diagram
type RequestHeader
properties
isRef 0
content complex
children organization-requesting organizations-requested message-type-id message-type-version message-number message-time-stamp
annotation
documentation
<requirement>REQ1034</requirement>
source <xs:element name="request-header" type="RequestHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1034</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

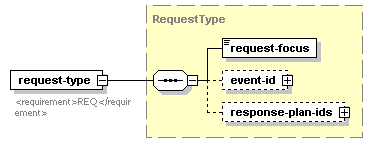

element EventFilterRequest/request-type
diagram
type RequestType
properties
isRef 0
content complex
children request-focus event-id response-plan-ids
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="request-type" type="RequestType">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventFilterRequest/request-filters
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children request-filter
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="request-filters" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="request-filter" type="RequestFilter"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

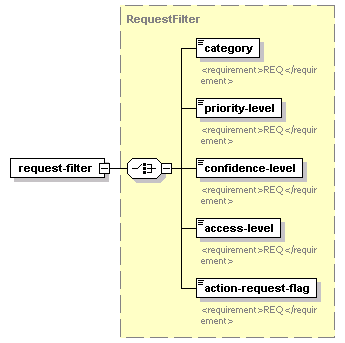

element EventFilterRequest/request-filters/request-filter
diagram
type RequestFilter
properties
isRef 0
content complex
children category priority-level confidence-level access-level action-request-flag
source <xs:element name="request-filter" type="RequestFilter"/>

element EventFilterRequest/request-locations
diagram
properties
isRef 0
content complex
children request-location
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="request-locations">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="request-location" type="RequestLocation"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

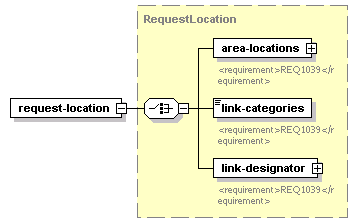

element EventFilterRequest/request-locations/request-location
diagram
type RequestLocation
properties
isRef 0
content complex
children area-locations link-categories link-designator
source <xs:element name="request-location" type="RequestLocation"/>

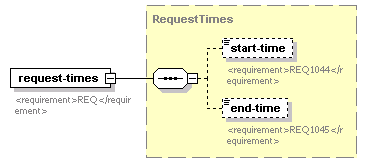

element EventFilterRequest/request-times
diagram
type RequestTimes
properties
isRef 0
content complex
children start-time end-time
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="request-times" type="RequestTimes">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
