complexType EventAdvice

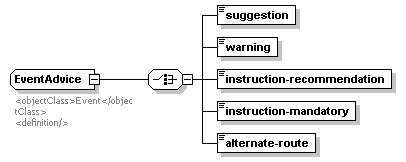

diagram
namespace	http://www.ite.org/tmdd
children	suggestion warning instruction-recommendation instruction-mandatory alternate-route
used by	element  EventDescription/advice
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="EventAdvice">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="suggestion" type="itis:SuggestionAdvice"/>     <xs:element name="warning" type="itis:WarningAdvice"/>     <xs:element name="instruction-recommendation" type="itis:AdviceInstructionsRecommendations"/>     <xs:element name="instruction-mandatory" type="itis:AdviceInstructionsMandatory"/>     <xs:element name="alternate-route" type="itis:AlternateRoute"/>   </xs:choice> </xs:complexType>

element EventAdvice/suggestion

diagram
type	itis:SuggestionAdvice
properties	isRef  0 content  simple
source	<xs:element name="suggestion" type="itis:SuggestionAdvice"/>

element EventAdvice/warning

diagram
type	itis:WarningAdvice
properties	isRef  0 content  simple
source	<xs:element name="warning" type="itis:WarningAdvice"/>

element EventAdvice/instruction-recommendation

diagram
type	itis:AdviceInstructionsRecommendations
properties	isRef  0 content  simple
source	<xs:element name="instruction-recommendation" type="itis:AdviceInstructionsRecommendations"/>

element EventAdvice/instruction-mandatory

diagram
type	itis:AdviceInstructionsMandatory
properties	isRef  0 content  simple
source	<xs:element name="instruction-mandatory" type="itis:AdviceInstructionsMandatory"/>

element EventAdvice/alternate-route

diagram
type	itis:AlternateRoute
properties	isRef  0 content  simple
source	<xs:element name="alternate-route" type="itis:AlternateRoute"/>
