complexType DevicePriorityQueueRequest

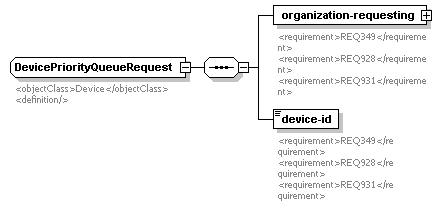

diagram
namespace http://www.ite.org/tmdd
children organization-requesting device-id
used by
element devicePriorityQueueRequest
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DevicePriorityQueueRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-requesting" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ349</requirement>
          <requirement>REQ928</requirement>
          <requirement>REQ931</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ349</requirement>
          <requirement>REQ928</requirement>
          <requirement>REQ931</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DevicePriorityQueueRequest/organization-requesting

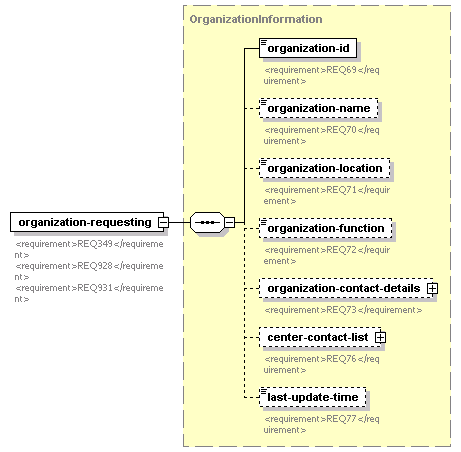

diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ349</requirement>
<requirement>REQ928</requirement>
<requirement>REQ931</requirement>
source <xs:element name="organization-requesting" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ349</requirement>
      <requirement>REQ928</requirement>
      <requirement>REQ931</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueRequest/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ349</requirement>
<requirement>REQ928</requirement>
<requirement>REQ931</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ349</requirement>
      <requirement>REQ928</requirement>
      <requirement>REQ931</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
