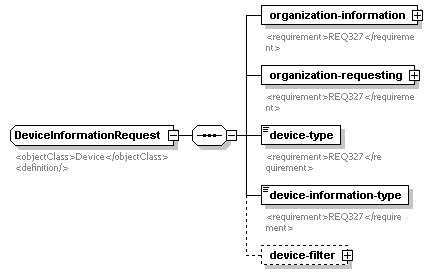

complexType DeviceInformationRequest
diagram
namespace http://www.ite.org/tmdd
children organization-information organization-requesting device-type device-information-type device-filter
used by
element deviceInformationRequest
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DeviceInformationRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ327</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="organization-requesting" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ327</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-type" type="Device-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ327</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-information-type" type="Device-information-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ327</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-filter" type="DeviceInformationRequestFilter" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

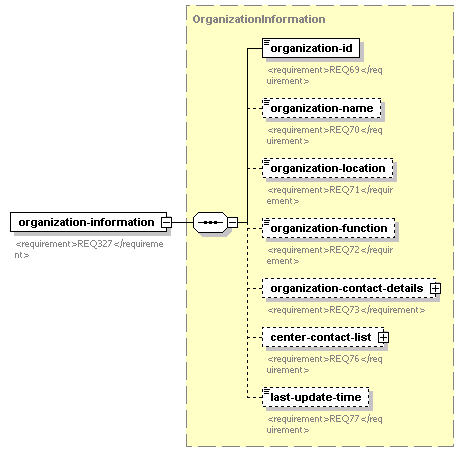

element DeviceInformationRequest/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ327</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ327</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInformationRequest/organization-requesting
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ327</requirement>
source <xs:element name="organization-requesting" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ327</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInformationRequest/device-type
diagram
type Device-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ327</requirement>
source <xs:element name="device-type" type="Device-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ327</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInformationRequest/device-information-type
diagram
type Device-information-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ327</requirement>
source <xs:element name="device-information-type" type="Device-information-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ327</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

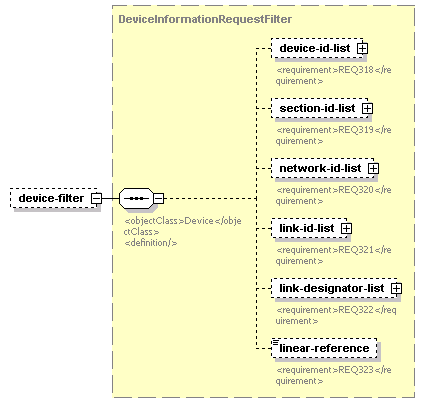

element DeviceInformationRequest/device-filter
diagram
type DeviceInformationRequestFilter
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children device-id-list section-id-list network-id-list link-id-list link-designator-list linear-reference
source <xs:element name="device-filter" type="DeviceInformationRequestFilter" minOccurs="0"/>
