complexType DetectorInformationRequest

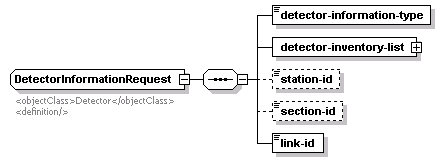

diagram
namespace	http://www.ite.org/tmdd
children	detector-information-type detector-inventory-list station-id section-id link-id
used by	element  detectorInformationRequest
annotation	documentation <objectClass>Detector</objectClass> <definition/>
source	<xs:complexType name="DetectorInformationRequest">   <xs:annotation>     <xs:documentation>       <objectClass>Detector</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="detector-information-type" type="Detector-information-type"/>     <xs:element name="detector-inventory-list" type="DetectorInventoryList"/>     <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0"/>     <xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0"/>     <xs:element name="link-id" type="Roadway-network-identifier"/>   </xs:sequence> </xs:complexType>

element DetectorInformationRequest/detector-information-type

diagram
type	Detector-information-type
properties	isRef  0 content  simple
source	<xs:element name="detector-information-type" type="Detector-information-type"/>

element DetectorInformationRequest/detector-inventory-list

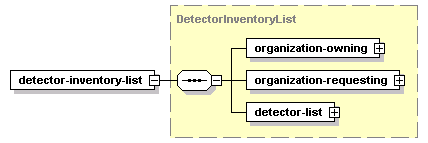

diagram
type	DetectorInventoryList
properties	isRef  0 content  complex
children	organization-owning organization-requesting detector-list
source	<xs:element name="detector-inventory-list" type="DetectorInventoryList"/>

element DetectorInformationRequest/station-id

diagram
type	Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0"/>

element DetectorInformationRequest/section-id

diagram
type	Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0"/>

element DetectorInformationRequest/link-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="link-id" type="Roadway-network-identifier"/>
