complexType DetectorHistory

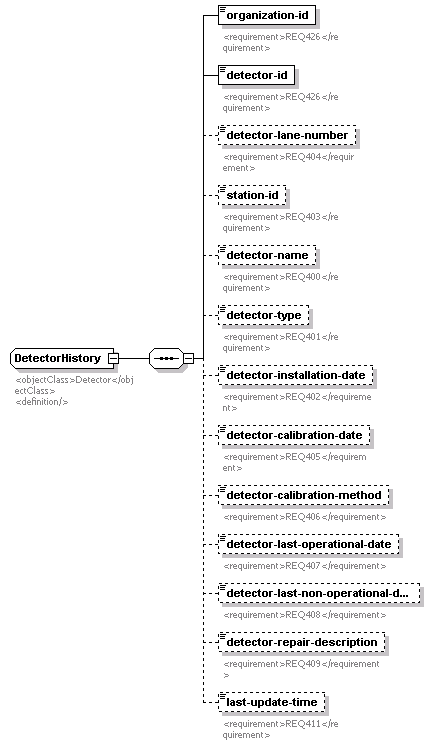

diagram
namespace http://www.ite.org/tmdd
children organization-id detector-id detector-lane-number station-id detector-name detector-type detector-installation-date detector-calibration-date detector-calibration-method detector-last-operational-date detector-last-non-operational-date detector-repair-description last-update-time
used by
element detectorHistory
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DetectorHistory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ426</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ426</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-lane-number" type="Detector-lane-number" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ404</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ403</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ400</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-type" type="Detector-type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ401</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-installation-date" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ402</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-calibration-date" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ405</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-calibration-method" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ406</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-last-operational-date" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ407</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-last-non-operational-date" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ408</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-repair-description" type="Event-description-notes-and-comments" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ409</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ411</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DetectorHistory/organization-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ426</requirement>
source <xs:element name="organization-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ426</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ426</requirement>
source <xs:element name="detector-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ426</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-lane-number
diagram
type Detector-lane-number
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
pattern [01]*
annotation
documentation
<requirement>REQ404</requirement>
source <xs:element name="detector-lane-number" type="Detector-lane-number" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ404</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/station-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ403</requirement>
source <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ403</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ400</requirement>
source <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ400</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-type
diagram
type Detector-type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ401</requirement>
source <xs:element name="detector-type" type="Detector-type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ401</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-installation-date
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ402</requirement>
source <xs:element name="detector-installation-date" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ402</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-calibration-date
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ405</requirement>
source <xs:element name="detector-calibration-date" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ405</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-calibration-method
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ406</requirement>
source <xs:element name="detector-calibration-method" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ406</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-last-operational-date
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ407</requirement>
source <xs:element name="detector-last-operational-date" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ407</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-last-non-operational-date
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ408</requirement>
source <xs:element name="detector-last-non-operational-date" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ408</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/detector-repair-description
diagram
type Event-description-notes-and-comments
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 2048
annotation
documentation
<requirement>REQ409</requirement>
source <xs:element name="detector-repair-description" type="Event-description-notes-and-comments" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ409</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorHistory/last-update-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ411</requirement>
source <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ411</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
