complexType DataSurfaceConditions

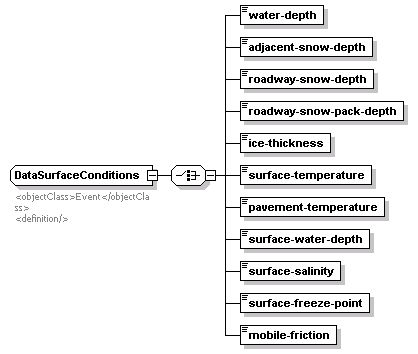

diagram
namespace	http://www.ite.org/tmdd
children	water-depth adjacent-snow-depth roadway-snow-depth roadway-snow-pack-depth ice-thickness surface-temperature pavement-temperature surface-water-depth surface-salinity surface-freeze-point mobile-friction
used by	element  EventQuantity/surface-conditions
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="DataSurfaceConditions">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="water-depth" type="ntcip:EssWaterDepth"/>     <xs:element name="adjacent-snow-depth" type="ntcip:EssAdjacentSnowDepth"/>     <xs:element name="roadway-snow-depth" type="ntcip:EssRoadwaySnowDepth"/>     <xs:element name="roadway-snow-pack-depth" type="ntcip:EssRoadwaySnowPackDepth"/>     <xs:element name="ice-thickness" type="ntcip:EssIceThickness"/>     <xs:element name="surface-temperature" type="ntcip:EssSurfaceTemperature"/>     <xs:element name="pavement-temperature" type="ntcip:EssPavementTemperature"/>     <xs:element name="surface-water-depth" type="ntcip:EssSurfaceWaterDepth"/>     <xs:element name="surface-salinity" type="ntcip:EssSurfaceSalinity"/>     <xs:element name="surface-freeze-point" type="ntcip:EssSurfaceFreezePoint"/>     <xs:element name="mobile-friction" type="ntcip:EssMobileFriction"/>   </xs:choice> </xs:complexType>

element DataSurfaceConditions/water-depth

diagram
type	ntcip:EssWaterDepth
properties	isRef  0 content  simple
source	<xs:element name="water-depth" type="ntcip:EssWaterDepth"/>

element DataSurfaceConditions/adjacent-snow-depth

diagram
type	ntcip:EssAdjacentSnowDepth
properties	isRef  0 content  simple
facets	maxInclusive  3001
source	<xs:element name="adjacent-snow-depth" type="ntcip:EssAdjacentSnowDepth"/>

element DataSurfaceConditions/roadway-snow-depth

diagram
type	ntcip:EssRoadwaySnowDepth
properties	isRef  0 content  simple
facets	maxInclusive  3001
source	<xs:element name="roadway-snow-depth" type="ntcip:EssRoadwaySnowDepth"/>

element DataSurfaceConditions/roadway-snow-pack-depth

diagram
type	ntcip:EssRoadwaySnowPackDepth
properties	isRef  0 content  simple
facets	maxInclusive  3001
source	<xs:element name="roadway-snow-pack-depth" type="ntcip:EssRoadwaySnowPackDepth"/>

element DataSurfaceConditions/ice-thickness

diagram
type	ntcip:EssIceThickness
properties	isRef  0 content  simple
source	<xs:element name="ice-thickness" type="ntcip:EssIceThickness"/>

element DataSurfaceConditions/surface-temperature

diagram
type	ntcip:EssSurfaceTemperature
properties	isRef  0 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="surface-temperature" type="ntcip:EssSurfaceTemperature"/>

element DataSurfaceConditions/pavement-temperature

diagram
type	ntcip:EssPavementTemperature
properties	isRef  0 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="pavement-temperature" type="ntcip:EssPavementTemperature"/>

element DataSurfaceConditions/surface-water-depth

diagram
type	ntcip:EssSurfaceWaterDepth
properties	isRef  0 content  simple
source	<xs:element name="surface-water-depth" type="ntcip:EssSurfaceWaterDepth"/>

element DataSurfaceConditions/surface-salinity

diagram
type	ntcip:EssSurfaceSalinity
properties	isRef  0 content  simple
source	<xs:element name="surface-salinity" type="ntcip:EssSurfaceSalinity"/>

element DataSurfaceConditions/surface-freeze-point

diagram
type	ntcip:EssSurfaceFreezePoint
properties	isRef  0 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="surface-freeze-point" type="ntcip:EssSurfaceFreezePoint"/>

element DataSurfaceConditions/mobile-friction

diagram
type	ntcip:EssMobileFriction
properties	isRef  0 content  simple
facets	maxInclusive  101
source	<xs:element name="mobile-friction" type="ntcip:EssMobileFriction"/>
