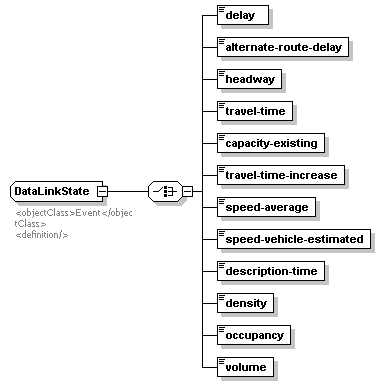

complexType DataLinkState

diagram
namespace	http://www.ite.org/tmdd
children	delay alternate-route-delay headway travel-time capacity-existing travel-time-increase speed-average speed-vehicle-estimated description-time density occupancy volume
used by	elements  LinkStatusList/data-link-state EventQuantity/link-state
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="DataLinkState">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="delay" type="Link-delay"/>     <xs:element name="alternate-route-delay" type="Link-alternate-route-delay"/>     <xs:element name="headway" type="Link-headway"/>     <xs:element name="travel-time" type="Link-travel-time"/>     <xs:element name="capacity-existing" type="Link-capacity-existing"/>     <xs:element name="travel-time-increase" type="Link-travel-time-increase"/>     <xs:element name="speed-average" type="Link-speed-average"/>     <xs:element name="speed-vehicle-estimated" type="Event-speed-vehicle-estimated"/>     <xs:element name="description-time" type="Event-description-time"/>     <xs:element name="density" type="Link-density"/>     <xs:element name="occupancy" type="Link-occupancy"/>     <xs:element name="volume" type="Link-volume"/>   </xs:choice> </xs:complexType>

element DataLinkState/delay

diagram
type	Link-delay
properties	isRef  0 content  simple
facets	maxInclusive  605000
source	<xs:element name="delay" type="Link-delay"/>

element DataLinkState/alternate-route-delay

diagram
type	Link-alternate-route-delay
properties	isRef  0 content  simple
facets	minInclusive  -1234567 maxInclusive  -1234567
source	<xs:element name="alternate-route-delay" type="Link-alternate-route-delay"/>

element DataLinkState/headway

diagram
type	Link-headway
properties	isRef  0 content  simple
facets	minInclusive  -1234567 maxInclusive  -1234567
source	<xs:element name="headway" type="Link-headway"/>

element DataLinkState/travel-time

diagram
type	Link-travel-time
properties	isRef  0 content  simple
source	<xs:element name="travel-time" type="Link-travel-time"/>

element DataLinkState/capacity-existing

diagram
type	Link-capacity-existing
properties	isRef  0 content  simple
facets	maxInclusive  100
source	<xs:element name="capacity-existing" type="Link-capacity-existing"/>

element DataLinkState/travel-time-increase

diagram
type	Link-travel-time-increase
properties	isRef  0 content  simple
facets	maxInclusive  100
source	<xs:element name="travel-time-increase" type="Link-travel-time-increase"/>

element DataLinkState/speed-average

diagram
type	Link-speed-average
properties	isRef  0 content  simple
source	<xs:element name="speed-average" type="Link-speed-average"/>

element DataLinkState/speed-vehicle-estimated

diagram
type	Event-speed-vehicle-estimated
properties	isRef  0 content  simple
facets	maxInclusive  300
source	<xs:element name="speed-vehicle-estimated" type="Event-speed-vehicle-estimated"/>

element DataLinkState/description-time

diagram
type	Event-description-time
properties	isRef  0 content  simple
facets	minInclusive  -1234567 maxInclusive  -1234567
source	<xs:element name="description-time" type="Event-description-time"/>

element DataLinkState/density

diagram
type	Link-density
properties	isRef  0 content  simple
facets	maxInclusive  2000
source	<xs:element name="density" type="Link-density"/>

element DataLinkState/occupancy

diagram
type	Link-occupancy
properties	isRef  0 content  simple
facets	maxInclusive  100
source	<xs:element name="occupancy" type="Link-occupancy"/>

element DataLinkState/volume

diagram
type	Link-volume
properties	isRef  0 content  simple
facets	minInclusive  1 maxInclusive  100000
source	<xs:element name="volume" type="Link-volume"/>
