complexType DataInformation

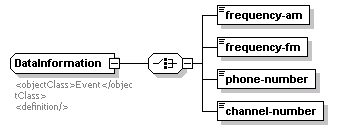

diagram
namespace	http://www.ite.org/tmdd
children	frequency-am frequency-fm phone-number channel-number
used by	element  EventQuantity/information-data
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="DataInformation">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="frequency-am" type="Event-frequency-am"/>     <xs:element name="frequency-fm" type="Event-frequency-fm"/>     <xs:element name="phone-number" type="Organization-resource-identifier"/>     <xs:element name="channel-number" type="Event-broadcast-channel-number"/>   </xs:choice> </xs:complexType>

element DataInformation/frequency-am

diagram
type	Event-frequency-am
properties	isRef  0 content  simple
facets	minInclusive  53 maxInclusive  171
source	<xs:element name="frequency-am" type="Event-frequency-am"/>

element DataInformation/frequency-fm

diagram
type	Event-frequency-fm
properties	isRef  0 content  simple
facets	minInclusive  887 maxInclusive  1079
source	<xs:element name="frequency-fm" type="Event-frequency-fm"/>

element DataInformation/phone-number

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="phone-number" type="Organization-resource-identifier"/>

element DataInformation/channel-number

diagram
type	Event-broadcast-channel-number
properties	isRef  0 content  simple
facets	minInclusive  1 maxInclusive  1000
source	<xs:element name="channel-number" type="Event-broadcast-channel-number"/>
