complexType DataExtent

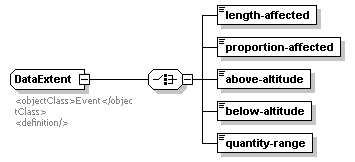

diagram
namespace	http://www.ite.org/tmdd
children	length-affected proportion-affected above-altitude below-altitude quantity-range
used by	element  EventQuantity/extent
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="DataExtent">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="length-affected" type="Event-length-affected"/>     <xs:element name="proportion-affected" type="Event-proportion-affected"/>     <xs:element name="above-altitude" type="Event-location-coordinates-altitude"/>     <xs:element name="below-altitude" type="Event-location-coordinates-altitude"/>     <xs:element name="quantity-range" type="Event-quantity-range"/>   </xs:choice> </xs:complexType>

element DataExtent/length-affected

diagram
type	Event-length-affected
properties	isRef  0 content  simple
facets	maxInclusive  1000
source	<xs:element name="length-affected" type="Event-length-affected"/>

element DataExtent/proportion-affected

diagram
type	Event-proportion-affected
properties	isRef  0 content  simple
facets	maxInclusive  100
source	<xs:element name="proportion-affected" type="Event-proportion-affected"/>

element DataExtent/above-altitude

diagram
type	Event-location-coordinates-altitude
properties	isRef  0 content  simple
facets	minInclusive  -8191 maxInclusive  57344
source	<xs:element name="above-altitude" type="Event-location-coordinates-altitude"/>

element DataExtent/below-altitude

diagram
type	Event-location-coordinates-altitude
properties	isRef  0 content  simple
facets	minInclusive  -8191 maxInclusive  57344
source	<xs:element name="below-altitude" type="Event-location-coordinates-altitude"/>

element DataExtent/quantity-range

diagram
type	Event-quantity-range
properties	isRef  0 content  simple
facets	maxInclusive  1000
source	<xs:element name="quantity-range" type="Event-quantity-range"/>
