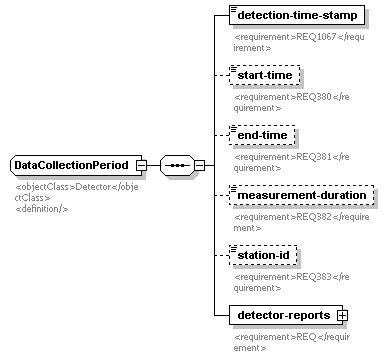

complexType DataCollectionPeriod
diagram
namespace http://www.ite.org/tmdd
children detection-time-stamp start-time end-time measurement-duration station-id detector-reports
used by
element DetectorData/collection-period/collection-period-item
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DataCollectionPeriod">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="detection-time-stamp" type="DateTimeZone">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1067</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="start-time" type="Device-command-start-time" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ380</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="end-time" type="Device-command-end-time" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ381</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measurement-duration" type="Link-measurement-duration" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ382</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ383</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-reports">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="detector-report" type="DetectorReport"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DataCollectionPeriod/detection-time-stamp
diagram
type DateTimeZone
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ1067</requirement>
source <xs:element name="detection-time-stamp" type="DateTimeZone">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1067</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DataCollectionPeriod/start-time
diagram
type Device-command-start-time
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ380</requirement>
source <xs:element name="start-time" type="Device-command-start-time" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ380</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DataCollectionPeriod/end-time
diagram
type Device-command-end-time
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ381</requirement>
source <xs:element name="end-time" type="Device-command-end-time" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ381</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DataCollectionPeriod/measurement-duration
diagram
type Link-measurement-duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 86400
annotation
documentation
<requirement>REQ382</requirement>
source <xs:element name="measurement-duration" type="Link-measurement-duration" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ382</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DataCollectionPeriod/station-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ383</requirement>
source <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ383</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DataCollectionPeriod/detector-reports
diagram
properties
isRef 0
content complex
children detector-report
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="detector-reports">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="detector-report" type="DetectorReport"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

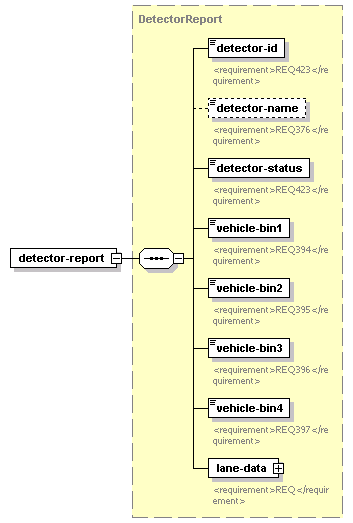

element DataCollectionPeriod/detector-reports/detector-report
diagram
type DetectorReport
properties
isRef 0
content complex
children detector-id detector-name detector-status vehicle-bin1 vehicle-bin2 vehicle-bin3 vehicle-bin4 lane-data
source <xs:element name="detector-report" type="DetectorReport"/>
