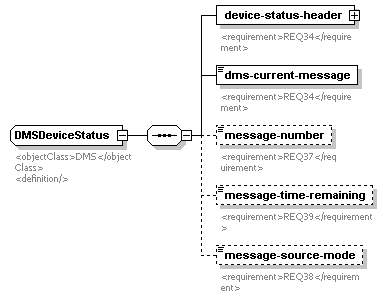

complexType DMSDeviceStatus
diagram
namespace http://www.ite.org/tmdd
children device-status-header dms-current-message message-number message-time-remaining message-source-mode
used by
element dMSDeviceStatus
annotation
documentation
<objectClass>DMS</objectClass>
<definition/>
source <xs:complexType name="DMSDeviceStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>DMS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-status-header" type="DeviceStatusHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ34</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-current-message" type="ntcip:DmsMessageMultiString">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ34</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-number" type="ntcip:DmsMessageNumber" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ37</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-time-remaining" type="ntcip:DmsMessageTimeRemaining" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ39</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="message-source-mode" type="ntcip:DmsMsgSourceMode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ38</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

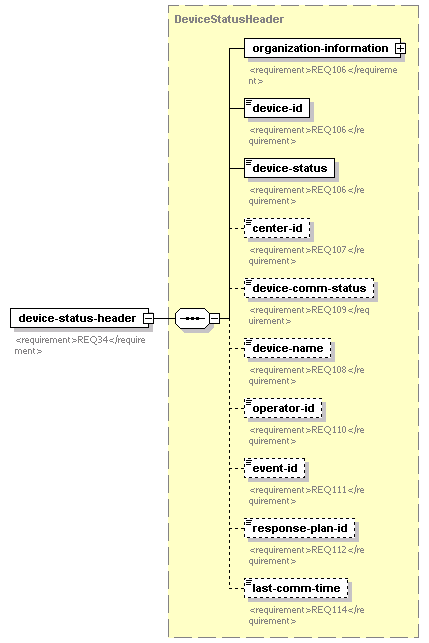

element DMSDeviceStatus/device-status-header
diagram
type DeviceStatusHeader
properties
isRef 0
content complex
children organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
annotation
documentation
<requirement>REQ34</requirement>
source <xs:element name="device-status-header" type="DeviceStatusHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ34</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSDeviceStatus/dms-current-message
diagram
type ntcip:DmsMessageMultiString
properties
isRef 0
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ34</requirement>
source <xs:element name="dms-current-message" type="ntcip:DmsMessageMultiString">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ34</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSDeviceStatus/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ37</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ37</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSDeviceStatus/message-time-remaining
diagram
type ntcip:DmsMessageTimeRemaining
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ39</requirement>
source <xs:element name="message-time-remaining" type="ntcip:DmsMessageTimeRemaining" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ39</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSDeviceStatus/message-source-mode
diagram
type ntcip:DmsMsgSourceMode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ38</requirement>
source <xs:element name="message-source-mode" type="ntcip:DmsMsgSourceMode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ38</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
