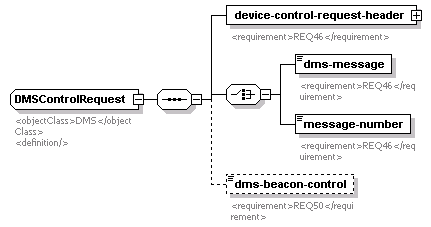

complexType DMSControlRequest
diagram
namespace http://www.ite.org/tmdd
children device-control-request-header dms-message message-number dms-beacon-control
used by
element dMSControlRequest
annotation
documentation
<objectClass>DMS</objectClass>
<definition/>
source <xs:complexType name="DMSControlRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>DMS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ46</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="dms-message" type="ntcip:DmsMessageMultiString">
        <xs:annotation>
          <xs:documentation>
            <requirement>REQ46</requirement>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="message-number" type="ntcip:DmsMessageNumber">
        <xs:annotation>
          <xs:documentation>
            <requirement>REQ46</requirement>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
    <xs:element name="dms-beacon-control" type="ntcip:DmsMessageBeacon" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ50</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

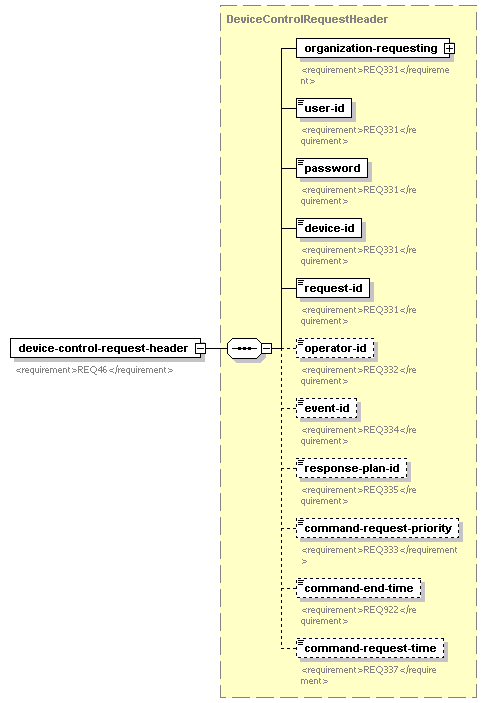

element DMSControlRequest/device-control-request-header
diagram
type DeviceControlRequestHeader
properties
isRef 0
content complex
children organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
annotation
documentation
<requirement>REQ46</requirement>
source <xs:element name="device-control-request-header" type="DeviceControlRequestHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ46</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSControlRequest/dms-message
diagram
type ntcip:DmsMessageMultiString
properties
isRef 0
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ46</requirement>
source <xs:element name="dms-message" type="ntcip:DmsMessageMultiString">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ46</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSControlRequest/message-number
diagram
type ntcip:DmsMessageNumber
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ46</requirement>
source <xs:element name="message-number" type="ntcip:DmsMessageNumber">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ46</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSControlRequest/dms-beacon-control
diagram
type ntcip:DmsMessageBeacon
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ50</requirement>
source <xs:element name="dms-beacon-control" type="ntcip:DmsMessageBeacon" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ50</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
