complexType CCTVSwitchCommandRequest

diagram
namespace	http://www.ite.org/tmdd
children	device-control-request-header input-channel-id output-channel-id
used by	element  cCTVSwitchCommandRequest
annotation	documentation <objectClass>CCTV</objectClass> <definition/>
source	<xs:complexType name="CCTVSwitchCommandRequest">   <xs:annotation>     <xs:documentation>       <objectClass>CCTV</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-control-request-header" type="DeviceControlRequestHeader"/>     <xs:element name="input-channel-id" type="Organization-resource-identifier"/>     <xs:element name="output-channel-id" type="Organization-resource-identifier"/>   </xs:sequence> </xs:complexType>

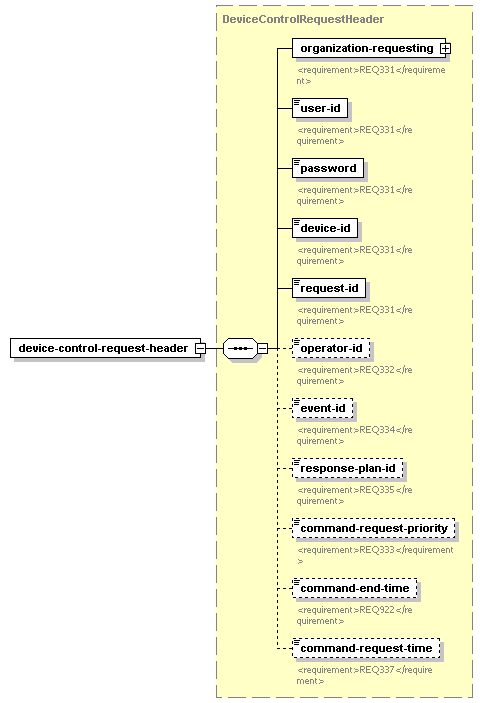

element CCTVSwitchCommandRequest/device-control-request-header

diagram
type	DeviceControlRequestHeader
properties	isRef  0 content  complex
children	organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
source	<xs:element name="device-control-request-header" type="DeviceControlRequestHeader"/>

element CCTVSwitchCommandRequest/input-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="input-channel-id" type="Organization-resource-identifier"/>

element CCTVSwitchCommandRequest/output-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="output-channel-id" type="Organization-resource-identifier"/>
