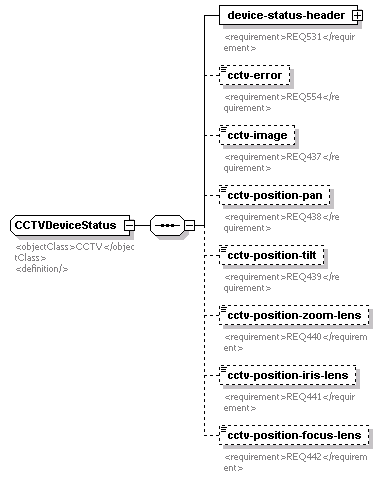

complexType CCTVDeviceStatus
diagram
namespace http://www.ite.org/tmdd
children device-status-header cctv-error cctv-image cctv-position-pan cctv-position-tilt cctv-position-zoom-lens cctv-position-iris-lens cctv-position-focus-lens
used by
element cCTVDeviceStatus
annotation
documentation
<objectClass>CCTV</objectClass>
<definition/>
source <xs:complexType name="CCTVDeviceStatus">
  <xs:annotation>
    <xs:documentation>
      <objectClass>CCTV</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-status-header" type="DeviceStatusHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ531</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-error" type="Device-error" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ554</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-image" type="Cctv-image-supported" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ437</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-position-pan" type="ntcip:PositionPan" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ438</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-position-tilt" type="ntcip:PositionTilt" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ439</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-position-zoom-lens" type="ntcip:PositionZoomLens" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ440</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-position-iris-lens" type="ntcip:PositionIrisLens" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ441</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-position-focus-lens" type="ntcip:PositionFocusLens" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ442</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

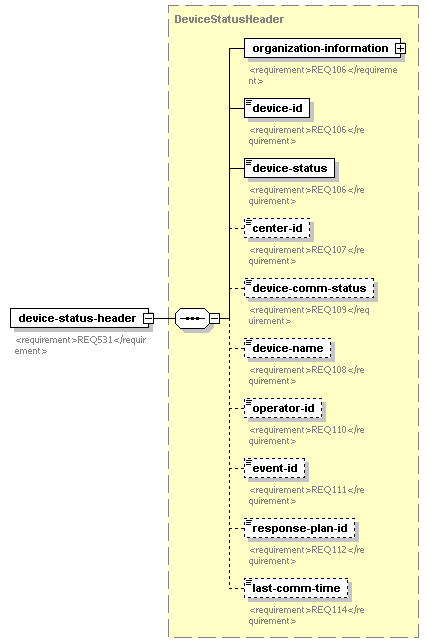

element CCTVDeviceStatus/device-status-header
diagram
type DeviceStatusHeader
properties
isRef 0
content complex
children organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
annotation
documentation
<requirement>REQ531</requirement>
source <xs:element name="device-status-header" type="DeviceStatusHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ531</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-error
diagram
type Device-error
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ554</requirement>
source <xs:element name="cctv-error" type="Device-error" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ554</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-image
diagram
type Cctv-image-supported
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ437</requirement>
source <xs:element name="cctv-image" type="Cctv-image-supported" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ437</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-position-pan
diagram
type ntcip:PositionPan
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ438</requirement>
source <xs:element name="cctv-position-pan" type="ntcip:PositionPan" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ438</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-position-tilt
diagram
type ntcip:PositionTilt
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ439</requirement>
source <xs:element name="cctv-position-tilt" type="ntcip:PositionTilt" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ439</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-position-zoom-lens
diagram
type ntcip:PositionZoomLens
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ440</requirement>
source <xs:element name="cctv-position-zoom-lens" type="ntcip:PositionZoomLens" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ440</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-position-iris-lens
diagram
type ntcip:PositionIrisLens
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ441</requirement>
source <xs:element name="cctv-position-iris-lens" type="ntcip:PositionIrisLens" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ441</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVDeviceStatus/cctv-position-focus-lens
diagram
type ntcip:PositionFocusLens
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ442</requirement>
source <xs:element name="cctv-position-focus-lens" type="ntcip:PositionFocusLens" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ442</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
