complexType WatchForVehicle

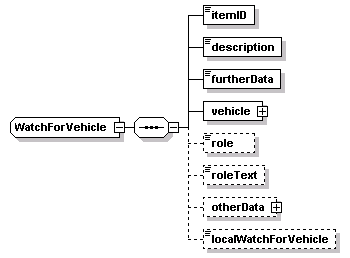

diagram
namespace	http://www.IM-Draft-03-00-44a
children	itemID description furtherData vehicle role roleText otherData localWatchForVehicle
used by	elements  WatchFor/watchForItems/watchForItem/vehicle WatchForResponse/updatedInformation/updatedInformation-item/vehicle VehicleData/vehicle
source	<xs:complexType name="WatchForVehicle">   <xs:sequence>     <xs:element name="itemID" type="ReferenceID"/>     <!-- the object reference for this item -->     <xs:element name="description" type="FreeText"/>     <xs:element name="furtherData" type="URL-Link"/>     <xs:element name="vehicle" type="jxdd:VehicleType"/>     <!-- The NCIC struc to define a vehicle -->     <xs:element name="role" type="VehicleRoleInEvent" minOccurs="0"/>     <xs:element name="roleText" type="FreeText" minOccurs="0"/>     <xs:element name="otherData" type="atis:Tail" minOccurs="0"/>     <xs:element name="localWatchForVehicle" type="local:WatchForVehicle" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element WatchForVehicle/itemID

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="itemID" type="ReferenceID"/>

element WatchForVehicle/description

diagram
type	FreeText
properties	isRef  0 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="description" type="FreeText"/>

element WatchForVehicle/furtherData

diagram
type	URL-Link
properties	isRef  0 content  simple
facets	minLength  1 maxLength  100
source	<xs:element name="furtherData" type="URL-Link"/>

element WatchForVehicle/vehicle

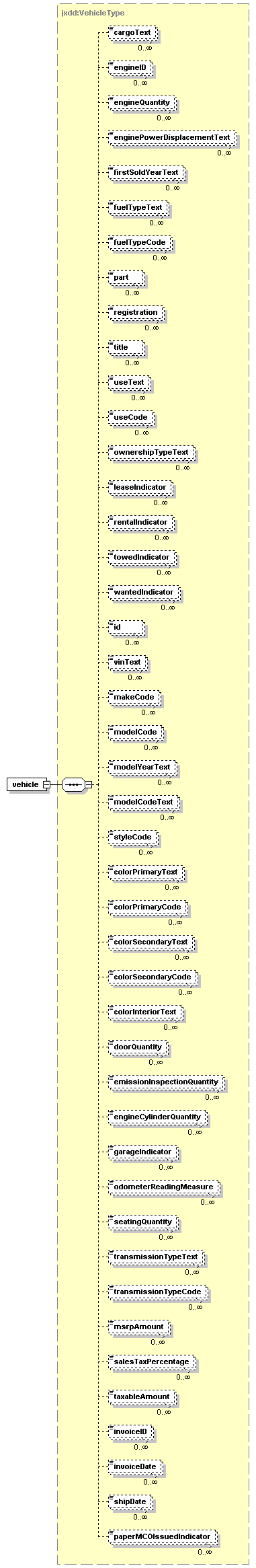

diagram
type	jxdd:VehicleType
properties	isRef  0 content  complex
children	cargoText engineID engineQuantity enginePowerDisplacementText firstSoldYearText fuelTypeText fuelTypeCode part registration title useText useCode ownershipTypeText leaseIndicator rentalIndicator towedIndicator wantedIndicator id vinText makeCode modelCode modelYearText modelCodeText styleCode colorPrimaryText colorPrimaryCode colorSecondaryText colorSecondaryCode colorInteriorText doorQuantity emissionInspectionQuantity engineCylinderQuantity garageIndicator odometerReadingMeasure seatingQuantity transmissionTypeText transmissionTypeCode msrpAmount salesTaxPercentage taxableAmount invoiceID invoiceDate shipDate paperMCOIssuedIndicator
source	<xs:element name="vehicle" type="jxdd:VehicleType"/>

element WatchForVehicle/role

diagram
type	VehicleRoleInEvent
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="role" type="VehicleRoleInEvent" minOccurs="0"/>

element WatchForVehicle/roleText

diagram
type	FreeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="roleText" type="FreeText" minOccurs="0"/>

element WatchForVehicle/otherData

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="otherData" type="atis:Tail" minOccurs="0"/>

element WatchForVehicle/localWatchForVehicle

diagram
type	local:WatchForVehicle
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	enumeration  insert-local-values-here
source	<xs:element name="localWatchForVehicle" type="local:WatchForVehicle" minOccurs="0"/>
