complexType WatchForPerson

diagram
namespace	http://www.IM-Draft-03-00-44a
children	itemID description furtherData person otherData
used by	elements  WatchFor/watchForItems/watchForItem/person WatchForResponse/updatedInformation/updatedInformation-item/person
source	<xs:complexType name="WatchForPerson">   <xs:sequence>     <xs:element name="itemID" type="ReferenceID"/>     <!-- the object reference for this item -->     <xs:element name="description" type="FreeText" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="person" type="PersonInformation"/>     <!-- the large collection of person          related data including NCIC elements -->     <xs:element name="otherData" type="atis:Tail" minOccurs="0"/>     <!-- #LOCAL -->   </xs:sequence> </xs:complexType>

element WatchForPerson/itemID

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="itemID" type="ReferenceID"/>

element WatchForPerson/description

diagram
type	FreeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="description" type="FreeText" minOccurs="0"/>

element WatchForPerson/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  100
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

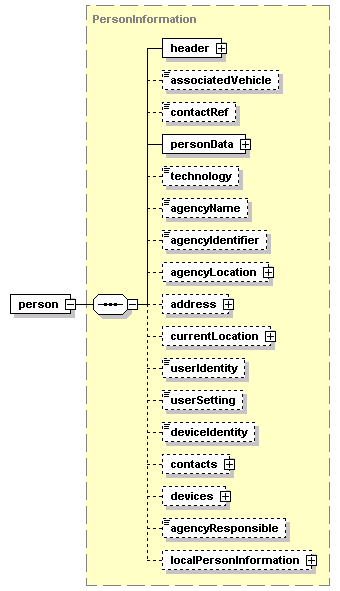

element WatchForPerson/person

diagram
type	PersonInformation
properties	isRef  0 content  complex
children	header associatedVehicle contactRef personData technology agencyName agencyIdentifier agencyLocation address currentLocation userIdentity userSetting deviceIdentity contacts devices agencyResponsible localPersonInformation
source	<xs:element name="person" type="PersonInformation"/>

element WatchForPerson/otherData

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="otherData" type="atis:Tail" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
