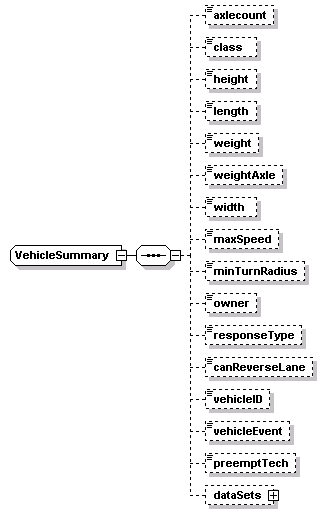

| elements | tcip:CPTPTVehicle/ieeeData RequestRouteAdvice/vehicleMakeup AssetDescription/vehicleSummary |
<xs:sequence>
<!-- note that here the reused TMDD data concepts are used
for the vehicle, not the link on which it travels -->
<xs:element name="axlecount" type="tmdd:Link-restriction-axle-count" minOccurs="0"/>
<xs:element name="class" type="tmdd:Link-restriction-class" minOccurs="0"/>
<xs:element name="height" type="tmdd:Link-restriction-height" minOccurs="0"/>
<xs:element name="length" type="tmdd:Link-restriction-length" minOccurs="0"/>
<xs:element name="weight" type="tmdd:Link-restriction-weight-vehicle" minOccurs="0"/>
<xs:element name="weightAxle" type="tmdd:Link-restriction-weight-axle" minOccurs="0"/>
<xs:element name="width" type="tmdd:Link-restriction-width" minOccurs="0"/>
<xs:element name="maxSpeed" type="tmdd:Link-speed-limit" minOccurs="0"/>
<xs:element name="minTurnRadius" minOccurs="0">
<xs:simpleType>
<xs:restriction base="xs:unsignedByte">
<xs:minInclusive value="1"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
<!-- the min radius circle the vehicle can make moving
forward and allowing a margin of clearance. Measured
from the farthest edge of the vehicle including all
protrusions (such as side view mirrors -which may be
in a retracted state)
Units are in tenths of a meter. -->
<xs:element name="owner" type="tmdd:Organization-identifier" minOccurs="0"/>
<xs:element name="responseType" type="itis:ResponderGroupAffected" minOccurs="0"/>
<!-- the gross type of response vehicle this is classed as -->
<xs:element name="canReverseLane" minOccurs="0">
<xs:simpleType>
<xs:restriction base="xs:boolean"/>
</xs:simpleType>
</xs:element>
<!-- set to true if the vehicle can run on reversed lanes -->
<xs:element name="vehicleID" type="CenterAssetPermRef" minOccurs="0"/>
<!-- the perm refer number, if needed to provide -->
<xs:element name="vehicleEvent" type="ReferenceID" minOccurs="0"/>
<!-- the assigned ref number in the event (if available) -->
<xs:element name="preemptTech" type="PreemptTech" minOccurs="0"/>
<!-- a list of the type of equipment this vehicle carries -->
<xs:element name="dataSets" type="TailSet" minOccurs="0"/>
<!-- locally determined sets tag/value pairs
shall be inserted here to allow local profiling -->
</xs:sequence>
</xs:complexType>
