complexType VMS-UsePlan

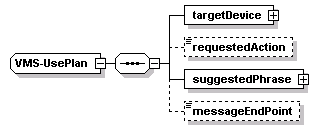

diagram
namespace	http://www.IM-Draft-03-00-44a
children	targetDevice requestedAction suggestedPhrase messageEndPoint
used by	elements  RequestPhysicalAsset/vmsUse TrafficControlPlan/vmsUse
source	<xs:complexType name="VMS-UsePlan">   <xs:sequence>     <xs:element name="targetDevice">       <xs:complexType>         <xs:sequence>           <xs:element name="who" type="tmdd:Organization-identifier"/>           <!-- A unique identifier for an organization within a region. -->           <xs:element name="what" type="tmdd:Device-identifier"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestedAction" type="RequestedAction" minOccurs="0"/>     <!-- request if immediate or delayed display of data -->     <xs:element name="suggestedPhrase" type="itis:ITIScodesAndText"/>     <!-- a sequence of suggested text to be used -->     <xs:element name="messageEndPoint" type="atis:DateTimePair" minOccurs="0"/>     <!-- when the message should cease being sent -->   </xs:sequence> </xs:complexType>

element VMS-UsePlan/targetDevice

diagram
properties	isRef  0 content  complex
children	who what
source	<xs:element name="targetDevice">   <xs:complexType>     <xs:sequence>       <xs:element name="who" type="tmdd:Organization-identifier"/>       <!-- A unique identifier for an organization within a region. -->       <xs:element name="what" type="tmdd:Device-identifier"/>     </xs:sequence>   </xs:complexType> </xs:element>

element VMS-UsePlan/targetDevice/who

diagram
type	tmdd:Organization-identifier
properties	isRef  0 content  simple
source	<xs:element name="who" type="tmdd:Organization-identifier"/>

element VMS-UsePlan/targetDevice/what

diagram
type	tmdd:Device-identifier
properties	isRef  0 content  simple
source	<xs:element name="what" type="tmdd:Device-identifier"/>

element VMS-UsePlan/requestedAction

diagram
type	RequestedAction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requestedAction" type="RequestedAction" minOccurs="0"/>

element VMS-UsePlan/suggestedPhrase

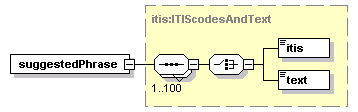

diagram
type	itis:ITIScodesAndText
properties	isRef  0 content  complex
children	itis text
source	<xs:element name="suggestedPhrase" type="itis:ITIScodesAndText"/>

element VMS-UsePlan/messageEndPoint

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="messageEndPoint" type="atis:DateTimePair" minOccurs="0"/>
