complexType RequestForCautions

diagram
namespace	http://www.IM-Draft-03-00-44a
children	event bounding
used by	element  MobileData/requestForCautions
source	<xs:complexType name="RequestForCautions">   <xs:sequence>     <xs:element name="event" type="ReferenceID"/>     <!-- unique alpha numerical designation for incident -->     <xs:element name="bounding" type="lrms:LocationReference" minOccurs="0"/>     <!-- limit replies to inside this area -->   </xs:sequence> </xs:complexType>

element RequestForCautions/event

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="event" type="ReferenceID"/>

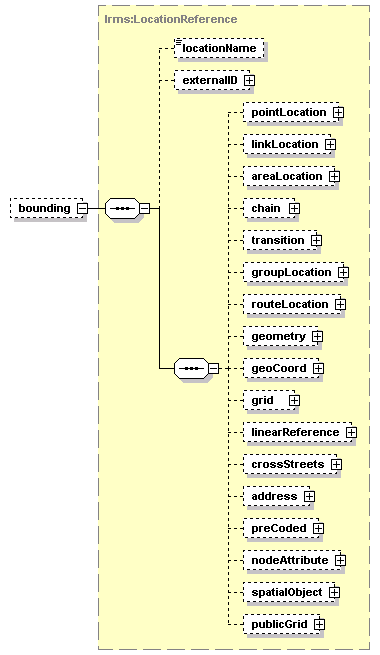

element RequestForCautions/bounding

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="bounding" type="lrms:LocationReference" minOccurs="0"/>
