complexType PastPositionRequest

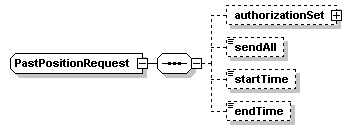

diagram
namespace	http://www.IM-Draft-03-00-44a
children	authorizationSet sendAll startTime endTime
used by	element  pastPositionRequest
source	<xs:complexType name="PastPositionRequest">   <xs:sequence>     <xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>     <xs:element name="sendAll" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- Send all available data if true -->     <xs:element name="startTime" type="atis:DateTimePair" minOccurs="0"/>     <xs:element name="endTime" type="atis:DateTimePair" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element PastPositionRequest/authorizationSet

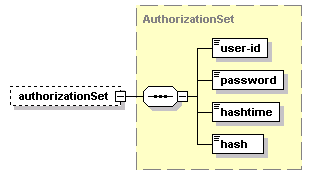

diagram
type	AuthorizationSet
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	user-id password hashtime hash
source	<xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>

element PastPositionRequest/sendAll

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="sendAll" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element PastPositionRequest/startTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="startTime" type="atis:DateTimePair" minOccurs="0"/>

element PastPositionRequest/endTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="endTime" type="atis:DateTimePair" minOccurs="0"/>
