complexType tcip:FcCommandDisableEquip

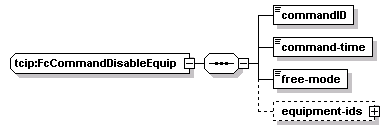

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	commandID command-time free-mode equipment-ids
used by	element  tcip:fcCommandDisableEquip
source	<xs:complexType name="FcCommandDisableEquip">   <xs:sequence>     <xs:element name="commandID" type="CPT-CommandID"/>     <xs:element name="command-time" type="CPT-DateTime"/>     <xs:element name="free-mode" type="CPT-Boolean"/>     <xs:element name="equipment-ids" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="equipment-id" type="CPT-SerialNumber"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:FcCommandDisableEquip/commandID

diagram
type	tcip:CPT-CommandID
properties	isRef  0 content  simple
source	<xs:element name="commandID" type="CPT-CommandID"/>

element tcip:FcCommandDisableEquip/command-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="command-time" type="CPT-DateTime"/>

element tcip:FcCommandDisableEquip/free-mode

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="free-mode" type="CPT-Boolean"/>

element tcip:FcCommandDisableEquip/equipment-ids

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	equipment-id
source	<xs:element name="equipment-ids" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="equipment-id" type="CPT-SerialNumber"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FcCommandDisableEquip/equipment-ids/equipment-id

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="equipment-id" type="CPT-SerialNumber"/>
