complexType tcip:FCAllowedTransferRecord

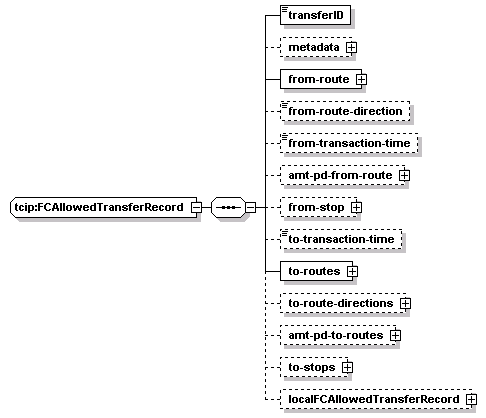

diagram
namespace http://www.TCIP-Adopted-03-00-01
children transferID metadata from-route from-route-direction from-transaction-time amt-pd-from-route from-stop to-transaction-time to-routes to-route-directions amt-pd-to-routes to-stops localFCAllowedTransferRecord
used by
elements tcip:FCValidationError/affected-transfers/affected-transfer tcip:FcFareDataPush/allowedTransfers/allowedTransfer tcip:FcFareLoadData/allowedTransfers/allowedTransfer
source <xs:complexType name="FCAllowedTransferRecord">
  <xs:sequence>
    <xs:element name="transferID" type="SCH-TransferID"/>
    <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>
    <xs:element name="from-route" type="SCHRouteIden"/>
    <xs:element name="from-route-direction" type="SCH-RouteDirectionName" minOccurs="0"/>
    <xs:element name="from-transaction-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="amt-pd-from-route" minOccurs="0">
      <xs:complexType>
        <xs:choice>
          <xs:element name="monetary-value" type="FC-FareCost"/>
          <xs:element name="ride-value" type="FC-RideValue"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="from-stop" type="CPTStoppointIden" minOccurs="0"/>
    <xs:element name="to-transaction-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="to-routes">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="to-route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="to-route-directions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="to-route-direction" type="SCH-RouteDirectionName"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="amt-pd-to-routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="amt-pd-to-route">
            <xs:complexType>
              <xs:choice>
                <xs:element name="monetary-value" type="FC-FareCost"/>
                <xs:element name="ride-value" type="FC-RideValue"/>
              </xs:choice>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="to-stops" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="to-stop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localFCAllowedTransferRecord" type="local:FCAllowedTransferRecord" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:FCAllowedTransferRecord/transferID
diagram
type tcip:SCH-TransferID
properties
isRef 0
content simple
source <xs:element name="transferID" type="SCH-TransferID"/>

element tcip:FCAllowedTransferRecord/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:FCAllowedTransferRecord/from-route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex

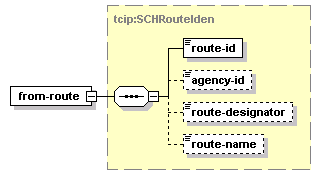

children route-id agency-id route-designator route-name
source <xs:element name="from-route" type="SCHRouteIden"/>

element tcip:FCAllowedTransferRecord/from-route-direction
diagram
type tcip:SCH-RouteDirectionName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="from-route-direction" type="SCH-RouteDirectionName" minOccurs="0"/>

element tcip:FCAllowedTransferRecord/from-transaction-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="from-transaction-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCAllowedTransferRecord/amt-pd-from-route
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children monetary-value ride-value
source <xs:element name="amt-pd-from-route" minOccurs="0">
  <xs:complexType>
    <xs:choice>
      <xs:element name="monetary-value" type="FC-FareCost"/>
      <xs:element name="ride-value" type="FC-RideValue"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/amt-pd-from-route/monetary-value
diagram
type tcip:FC-FareCost
properties
isRef 0
content simple
source <xs:element name="monetary-value" type="FC-FareCost"/>

element tcip:FCAllowedTransferRecord/amt-pd-from-route/ride-value
diagram
type tcip:FC-RideValue
properties
isRef 0
content simple
source <xs:element name="ride-value" type="FC-RideValue"/>

element tcip:FCAllowedTransferRecord/from-stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint-id agency-id name
source <xs:element name="from-stop" type="CPTStoppointIden" minOccurs="0"/>

element tcip:FCAllowedTransferRecord/to-transaction-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="to-transaction-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCAllowedTransferRecord/to-routes
diagram
properties
isRef 0
content complex
children to-route
source <xs:element name="to-routes">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="to-route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/to-routes/to-route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex

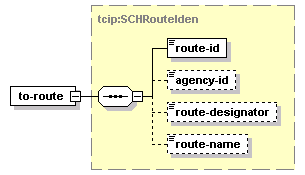

children route-id agency-id route-designator route-name
source <xs:element name="to-route" type="SCHRouteIden"/>

element tcip:FCAllowedTransferRecord/to-route-directions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children to-route-direction
source <xs:element name="to-route-directions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="to-route-direction" type="SCH-RouteDirectionName"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/to-route-directions/to-route-direction
diagram
type tcip:SCH-RouteDirectionName
properties
isRef 0
content simple
source <xs:element name="to-route-direction" type="SCH-RouteDirectionName"/>

element tcip:FCAllowedTransferRecord/amt-pd-to-routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children amt-pd-to-route
source <xs:element name="amt-pd-to-routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="amt-pd-to-route">
        <xs:complexType>
          <xs:choice>
            <xs:element name="monetary-value" type="FC-FareCost"/>
            <xs:element name="ride-value" type="FC-RideValue"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/amt-pd-to-routes/amt-pd-to-route
diagram
properties
isRef 0
content complex
children monetary-value ride-value
source <xs:element name="amt-pd-to-route">
  <xs:complexType>
    <xs:choice>
      <xs:element name="monetary-value" type="FC-FareCost"/>
      <xs:element name="ride-value" type="FC-RideValue"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/amt-pd-to-routes/amt-pd-to-route/monetary-value
diagram
type tcip:FC-FareCost
properties
isRef 0
content simple
source <xs:element name="monetary-value" type="FC-FareCost"/>

element tcip:FCAllowedTransferRecord/amt-pd-to-routes/amt-pd-to-route/ride-value
diagram
type tcip:FC-RideValue
properties
isRef 0
content simple
source <xs:element name="ride-value" type="FC-RideValue"/>

element tcip:FCAllowedTransferRecord/to-stops
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children to-stop
source <xs:element name="to-stops" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="to-stop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FCAllowedTransferRecord/to-stops/to-stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="to-stop" type="CPTStoppointIden"/>

element tcip:FCAllowedTransferRecord/localFCAllowedTransferRecord
diagram
type FCAllowedTransferRecord
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localFCAllowedTransferRecord" type="local:FCAllowedTransferRecord" minOccurs="0"/>
