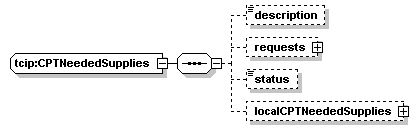

complexType tcip:CPTNeededSupplies

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	description requests status localCPTNeededSupplies
used by	element  tcip:CCWorkOrder/needed-parts-materials/needed-parts-material
source	<xs:complexType name="CPTNeededSupplies">   <xs:sequence>     <xs:element name="description" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="requests" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="request" type="CPT-PurchaseReqNumber"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="status" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localCPTNeededSupplies" type="local:CPTNeededSupplies" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTNeededSupplies/description

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="description" type="CPT-Footnote" minOccurs="0"/>

element tcip:CPTNeededSupplies/requests

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	request
source	<xs:element name="requests" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="request" type="CPT-PurchaseReqNumber"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CPTNeededSupplies/requests/request

diagram
type	tcip:CPT-PurchaseReqNumber
properties	isRef  0 content  simple
facets	minLength  1 maxLength  60
source	<xs:element name="request" type="CPT-PurchaseReqNumber"/>

element tcip:CPTNeededSupplies/status

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="status" type="CPT-Footnote" minOccurs="0"/>

element tcip:CPTNeededSupplies/localCPTNeededSupplies

diagram
type	CPTNeededSupplies
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCPTNeededSupplies" type="local:CPTNeededSupplies" minOccurs="0"/>
