complexType atis:SubscribeForm

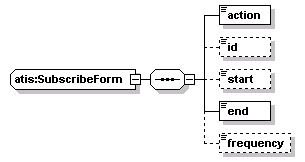

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	action id start end frequency
used by	elements  RequestInformation/subscription atis:InformationRequest/subscription
source	<xs:complexType name="SubscribeForm">   <xs:sequence>     <xs:element name="action" type="SubscribeType"/>     <xs:element name="id" type="im:ReferenceID" minOccurs="0"/>     <!-- used to provide a unique string for the subscription -->     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <!-- presume now if not present -->     <xs:element name="end" type="DateTimePair"/>     <xs:element name="frequency" type="TimeInterval" minOccurs="0"/>     <!-- requested time between updates -->   </xs:sequence> </xs:complexType>

element atis:SubscribeForm/action

diagram
type	atis:SubscribeType
properties	isRef  0 content  simple
source	<xs:element name="action" type="SubscribeType"/>

element atis:SubscribeForm/id

diagram
type	ReferenceID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="id" type="im:ReferenceID" minOccurs="0"/>

element atis:SubscribeForm/start

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element atis:SubscribeForm/end

diagram
type	atis:DateTimePair
properties	isRef  0 content  simple
source	<xs:element name="end" type="DateTimePair"/>

element atis:SubscribeForm/frequency

diagram
type	atis:TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="frequency" type="TimeInterval" minOccurs="0"/>
