complexType tcip:CptCommandTimeUpdate

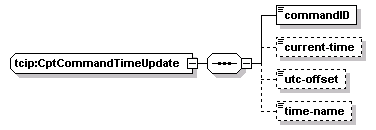

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	commandID current-time utc-offset time-name
used by	element  tcip:cptCommandTimeUpdate
source	<xs:complexType name="CptCommandTimeUpdate">   <xs:sequence>     <xs:element name="commandID" type="CPT-CommandID"/>     <xs:element name="current-time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="utc-offset" type="CPT-Duration" minOccurs="0"/>     <xs:element name="time-name" type="CPT-TimeName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CptCommandTimeUpdate/commandID

diagram
type	tcip:CPT-CommandID
properties	isRef  0 content  simple
source	<xs:element name="commandID" type="CPT-CommandID"/>

element tcip:CptCommandTimeUpdate/current-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="current-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:CptCommandTimeUpdate/utc-offset

diagram
type	tcip:CPT-Duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="utc-offset" type="CPT-Duration" minOccurs="0"/>

element tcip:CptCommandTimeUpdate/time-name

diagram
type	tcip:CPT-TimeName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="time-name" type="CPT-TimeName" minOccurs="0"/>
