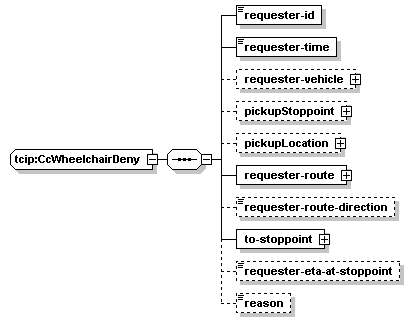

complexType tcip:CcWheelchairDeny

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	requester-id requester-time requester-vehicle pickupStoppoint pickupLocation requester-route requester-route-direction to-stoppoint requester-eta-at-stoppoint reason
used by	element  tcip:ccWheelchairDeny
source	<xs:complexType name="CcWheelchairDeny">   <xs:sequence>     <xs:element name="requester-id" type="CC-TravelerRequestID"/>     <!-- assigned by requester entity -->     <xs:element name="requester-time" type="CPT-DateTime"/>     <!-- time requested -->     <xs:element name="requester-vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="pickupStoppoint" type="CPTStoppointIden" minOccurs="0"/>     <!-- if requester is at a stoppoint -->     <xs:element name="pickupLocation" type="lrms:GeoLocation" minOccurs="0"/>     <!-- if requester not at stoppoint -->     <xs:element name="requester-route" type="SCHRouteIden"/>     <xs:element name="requester-route-direction" type="lrms:Direction" minOccurs="0"/>     <xs:element name="to-stoppoint" type="CPTStoppointIden"/>     <xs:element name="requester-eta-at-stoppoint" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="reason" type="CC-TravelerDenyReason" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcWheelchairDeny/requester-id

diagram
type	tcip:CC-TravelerRequestID
properties	isRef  0 content  simple
source	<xs:element name="requester-id" type="CC-TravelerRequestID"/>

element tcip:CcWheelchairDeny/requester-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="requester-time" type="CPT-DateTime"/>

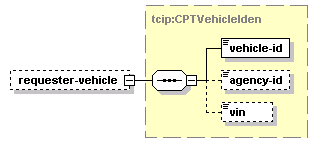

element tcip:CcWheelchairDeny/requester-vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="requester-vehicle" type="CPTVehicleIden" minOccurs="0"/>

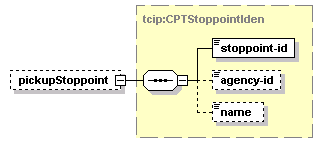

element tcip:CcWheelchairDeny/pickupStoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="pickupStoppoint" type="CPTStoppointIden" minOccurs="0"/>

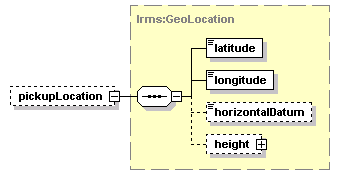

element tcip:CcWheelchairDeny/pickupLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="pickupLocation" type="lrms:GeoLocation" minOccurs="0"/>

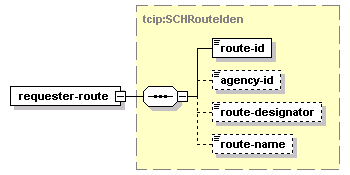

element tcip:CcWheelchairDeny/requester-route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="requester-route" type="SCHRouteIden"/>

element tcip:CcWheelchairDeny/requester-route-direction

diagram
type	lrms:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requester-route-direction" type="lrms:Direction" minOccurs="0"/>

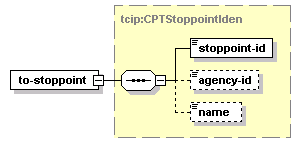

element tcip:CcWheelchairDeny/to-stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="to-stoppoint" type="CPTStoppointIden"/>

element tcip:CcWheelchairDeny/requester-eta-at-stoppoint

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requester-eta-at-stoppoint" type="CPT-DateTime" minOccurs="0"/>

element tcip:CcWheelchairDeny/reason

diagram
type	tcip:CC-TravelerDenyReason
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="reason" type="CC-TravelerDenyReason" minOccurs="0"/>
