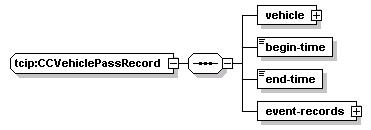

complexType tcip:CCVehiclePassRecord
diagram
namespace http://www.TCIP-Adopted-03-00-01
children vehicle begin-time end-time event-records
used by
element tcip:CcFleetPassengerData/vehicle-pass-records/vehicle-pass-record
source <xs:complexType name="CCVehiclePassRecord">
  <xs:sequence>
    <xs:element name="vehicle" type="CPTVehicleIden"/>
    <xs:element name="begin-time" type="CPT-DateTime"/>
    <xs:element name="end-time" type="CPT-DateTime"/>
    <xs:element name="event-records">
      <xs:complexType>
        <xs:sequence maxOccurs="5000">
          <xs:element name="event-record" type="OBStoppointRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CCVehiclePassRecord/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CCVehiclePassRecord/begin-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-time" type="CPT-DateTime"/>

element tcip:CCVehiclePassRecord/end-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-time" type="CPT-DateTime"/>

element tcip:CCVehiclePassRecord/event-records
diagram
properties
isRef 0
content complex
children event-record
source <xs:element name="event-records">
  <xs:complexType>
    <xs:sequence maxOccurs="5000">
      <xs:element name="event-record" type="OBStoppointRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

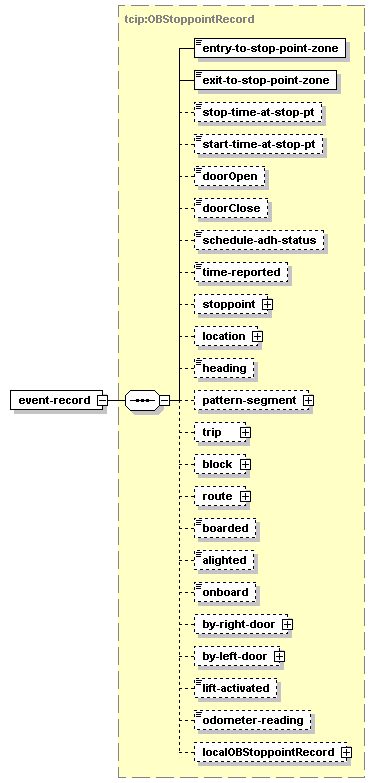

element tcip:CCVehiclePassRecord/event-records/event-record
diagram
type tcip:OBStoppointRecord
properties
isRef 0
content complex
children entry-to-stop-point-zone exit-to-stop-point-zone stop-time-at-stop-pt start-time-at-stop-pt doorOpen doorClose schedule-adh-status time-reported stoppoint location heading pattern-segment trip block route boarded alighted onboard by-right-door by-left-door lift-activated odometer-reading localOBStoppointRecord
source <xs:element name="event-record" type="OBStoppointRecord"/>
