complexType tcip:CCTimepointHistory

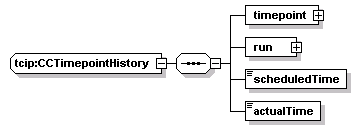

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	timepoint run scheduledTime actualTime
source	<xs:complexType name="CCTimepointHistory">   <xs:sequence>     <xs:element name="timepoint" type="SCHTimepointIden"/>     <xs:element name="run" type="SCHRunIden"/>     <xs:element name="scheduledTime" type="SCH-Time"/>     <xs:element name="actualTime" type="SCH-Time"/>   </xs:sequence> </xs:complexType>

element tcip:CCTimepointHistory/timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint" type="SCHTimepointIden"/>

element tcip:CCTimepointHistory/run

diagram
type	tcip:SCHRunIden
properties	isRef  0 content  complex
children	run-id agency-id designator
source	<xs:element name="run" type="SCHRunIden"/>

element tcip:CCTimepointHistory/scheduledTime

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="scheduledTime" type="SCH-Time"/>

element tcip:CCTimepointHistory/actualTime

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="actualTime" type="SCH-Time"/>
