complexType tcip:CcRemotePTVDisableAck

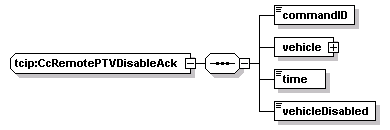

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	commandID vehicle time vehicleDisabled
used by	element  tcip:ccRemotePTVDisableAck
source	<xs:complexType name="CcRemotePTVDisableAck">   <xs:sequence>     <xs:element name="commandID" type="CPT-CommandID"/>     <xs:element name="vehicle" type="CPTVehicleIden"/>     <xs:element name="time" type="CPT-DateTime"/>     <xs:element name="vehicleDisabled" type="CPT-Boolean"/>   </xs:sequence> </xs:complexType>

element tcip:CcRemotePTVDisableAck/commandID

diagram
type	tcip:CPT-CommandID
properties	isRef  0 content  simple
source	<xs:element name="commandID" type="CPT-CommandID"/>

element tcip:CcRemotePTVDisableAck/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcRemotePTVDisableAck/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>

element tcip:CcRemotePTVDisableAck/vehicleDisabled

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="vehicleDisabled" type="CPT-Boolean"/>
