complexType tcip:CcPTVTripResponse

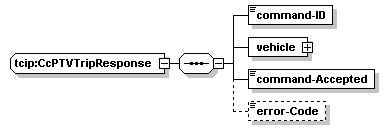

diagram
namespace http://www.TCIP-Adopted-03-00-01
children command-ID vehicle command-Accepted error-Code
used by
element tcip:ccPTVTripResponse
source <xs:complexType name="CcPTVTripResponse">
  <xs:sequence>
    <xs:element name="command-ID" type="CPT-CommandID"/>
    <!-- copy from CCPTVTrips message -->
    <xs:element name="vehicle" type="CPTVehicleIden"/>
    <xs:element name="command-Accepted" type="CPT-Boolean"/>
    <!-- true if CCPTVTrips message was valid -->
    <xs:element name="error-Code" type="CPT-ErrorCode" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcPTVTripResponse/command-ID
diagram
type tcip:CPT-CommandID
properties
isRef 0
content simple
source <xs:element name="command-ID" type="CPT-CommandID"/>

element tcip:CcPTVTripResponse/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcPTVTripResponse/command-Accepted
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="command-Accepted" type="CPT-Boolean"/>

element tcip:CcPTVTripResponse/error-Code
diagram
type tcip:CPT-ErrorCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="error-Code" type="CPT-ErrorCode" minOccurs="0"/>
