complexType tcip:CCParameterReportRequest

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	logical-device-address metadata parameter-rate-request
used by	element  tcip:CcPTVAlarmLimits/parameterLogRates/parameterLogRate
source	<xs:complexType name="CCParameterReportRequest">   <xs:sequence>     <xs:element name="logical-device-address" type="OB-MID"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="parameter-rate-request">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="parameter-rate-request-item" type="CCParameterRateConfiguration"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CCParameterReportRequest/logical-device-address

diagram
type	tcip:OB-MID
properties	isRef  0 content  simple
source	<xs:element name="logical-device-address" type="OB-MID"/>

element tcip:CCParameterReportRequest/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:CCParameterReportRequest/parameter-rate-request

diagram
properties	isRef  0 content  complex
children	parameter-rate-request-item
source	<xs:element name="parameter-rate-request">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="parameter-rate-request-item" type="CCParameterRateConfiguration"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCParameterReportRequest/parameter-rate-request/parameter-rate-request-item

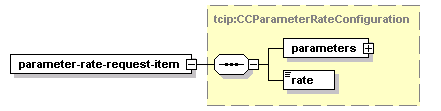

diagram
type	tcip:CCParameterRateConfiguration
properties	isRef  0 content  complex
children	parameters rate
source	<xs:element name="parameter-rate-request-item" type="CCParameterRateConfiguration"/>
