complexType tcip:CCManualAlarmDefinition

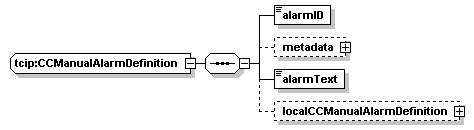

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	alarmID metadata alarmText localCCManualAlarmDefinition
used by	element  tcip:CcPTVAlarmLimits/manualAlarms/manualAlarm
source	<xs:complexType name="CCManualAlarmDefinition">   <xs:sequence>     <xs:element name="alarmID" type="CC-ManualAlarmID"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="alarmText" type="CC-AlarmText"/>     <xs:element name="localCCManualAlarmDefinition" type="local:CCManualAlarmDefinition" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCManualAlarmDefinition/alarmID

diagram
type	tcip:CC-ManualAlarmID
properties	isRef  0 content  simple
source	<xs:element name="alarmID" type="CC-ManualAlarmID"/>

element tcip:CCManualAlarmDefinition/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:CCManualAlarmDefinition/alarmText

diagram
type	tcip:CC-AlarmText
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="alarmText" type="CC-AlarmText"/>

element tcip:CCManualAlarmDefinition/localCCManualAlarmDefinition

diagram
type	CCManualAlarmDefinition
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCCManualAlarmDefinition" type="local:CCManualAlarmDefinition" minOccurs="0"/>
