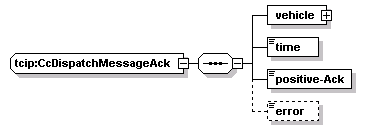

complexType tcip:CcDispatchMessageAck

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle time positive-Ack error
used by	element  tcip:ccDispatchMessageAck
source	<xs:complexType name="CcDispatchMessageAck">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden"/>     <xs:element name="time" type="CPT-DateTime"/>     <xs:element name="positive-Ack" type="CPT-Boolean"/>     <xs:element name="error" type="CPT-Boolean" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcDispatchMessageAck/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcDispatchMessageAck/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>

element tcip:CcDispatchMessageAck/positive-Ack

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="positive-Ack" type="CPT-Boolean"/>

element tcip:CcDispatchMessageAck/error

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="error" type="CPT-Boolean" minOccurs="0"/>
