complexType tcip:CcDGPSPush

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	header corrections
used by	element  tcip:ccDGPSPush
source	<xs:complexType name="CcDGPSPush">   <xs:sequence>     <xs:element name="header" type="CPTPushHeader"/>     <xs:element name="corrections">       <xs:complexType>         <xs:sequence maxOccurs="32">           <xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

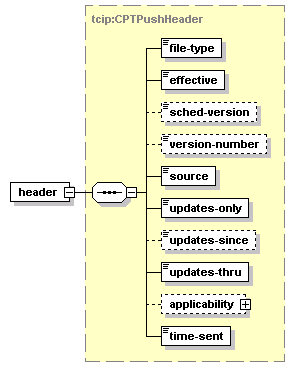

element tcip:CcDGPSPush/header

diagram
type	tcip:CPTPushHeader
properties	isRef  0 content  complex
children	file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source	<xs:element name="header" type="CPTPushHeader"/>

element tcip:CcDGPSPush/corrections

diagram
properties	isRef  0 content  complex
children	correction
source	<xs:element name="corrections">   <xs:complexType>     <xs:sequence maxOccurs="32">       <xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>     </xs:sequence>   </xs:complexType> </xs:element>

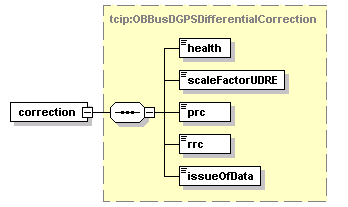

element tcip:CcDGPSPush/corrections/correction

diagram
type	tcip:OBBusDGPSDifferentialCorrection
properties	isRef  0 content  complex
children	health scaleFactorUDRE prc rrc issueOfData
source	<xs:element name="correction" type="OBBusDGPSDifferentialCorrection"/>
