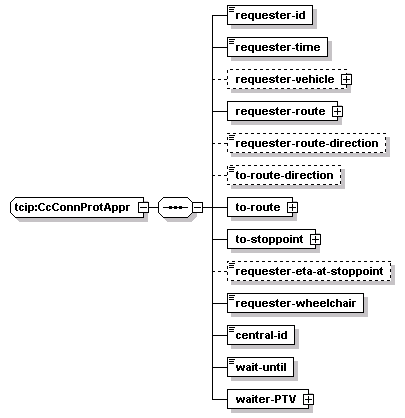

complexType tcip:CcConnProtAppr

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	requester-id requester-time requester-vehicle requester-route requester-route-direction to-route-direction to-route to-stoppoint requester-eta-at-stoppoint requester-wheelchair central-id wait-until waiter-PTV
used by	element  tcip:ccConnProtAppr
source	<xs:complexType name="CcConnProtAppr">   <xs:sequence>     <xs:element name="requester-id" type="CC-TravelerRequestID"/>     <!-- assigned by requester entity -->     <xs:element name="requester-time" type="CPT-DateTime"/>     <!-- time requested -->     <xs:element name="requester-vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="requester-route" type="SCHRouteIden"/>     <xs:element name="requester-route-direction" type="lrms:Direction" minOccurs="0"/>     <xs:element name="to-route-direction" type="lrms:Direction" minOccurs="0"/>     <xs:element name="to-route" type="SCHRouteIden"/>     <xs:element name="to-stoppoint" type="CPTStoppointIden"/>     <xs:element name="requester-eta-at-stoppoint" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="requester-wheelchair" type="CPT-Boolean"/>     <xs:element name="central-id" type="CC-TravelerRequestID"/>     <xs:element name="wait-until" type="CPT-DateTime"/>     <xs:element name="waiter-PTV" type="CPTVehicleIden"/>   </xs:sequence> </xs:complexType>

element tcip:CcConnProtAppr/requester-id

diagram
type	tcip:CC-TravelerRequestID
properties	isRef  0 content  simple
source	<xs:element name="requester-id" type="CC-TravelerRequestID"/>

element tcip:CcConnProtAppr/requester-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="requester-time" type="CPT-DateTime"/>

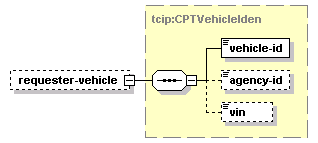

element tcip:CcConnProtAppr/requester-vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="requester-vehicle" type="CPTVehicleIden" minOccurs="0"/>

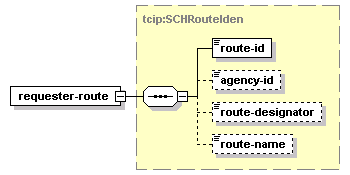

element tcip:CcConnProtAppr/requester-route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="requester-route" type="SCHRouteIden"/>

element tcip:CcConnProtAppr/requester-route-direction

diagram
type	lrms:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requester-route-direction" type="lrms:Direction" minOccurs="0"/>

element tcip:CcConnProtAppr/to-route-direction

diagram
type	lrms:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="to-route-direction" type="lrms:Direction" minOccurs="0"/>

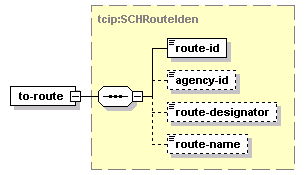

element tcip:CcConnProtAppr/to-route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="to-route" type="SCHRouteIden"/>

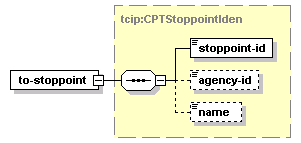

element tcip:CcConnProtAppr/to-stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="to-stoppoint" type="CPTStoppointIden"/>

element tcip:CcConnProtAppr/requester-eta-at-stoppoint

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requester-eta-at-stoppoint" type="CPT-DateTime" minOccurs="0"/>

element tcip:CcConnProtAppr/requester-wheelchair

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="requester-wheelchair" type="CPT-Boolean"/>

element tcip:CcConnProtAppr/central-id

diagram
type	tcip:CC-TravelerRequestID
properties	isRef  0 content  simple
source	<xs:element name="central-id" type="CC-TravelerRequestID"/>

element tcip:CcConnProtAppr/wait-until

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="wait-until" type="CPT-DateTime"/>

element tcip:CcConnProtAppr/waiter-PTV

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="waiter-PTV" type="CPTVehicleIden"/>
